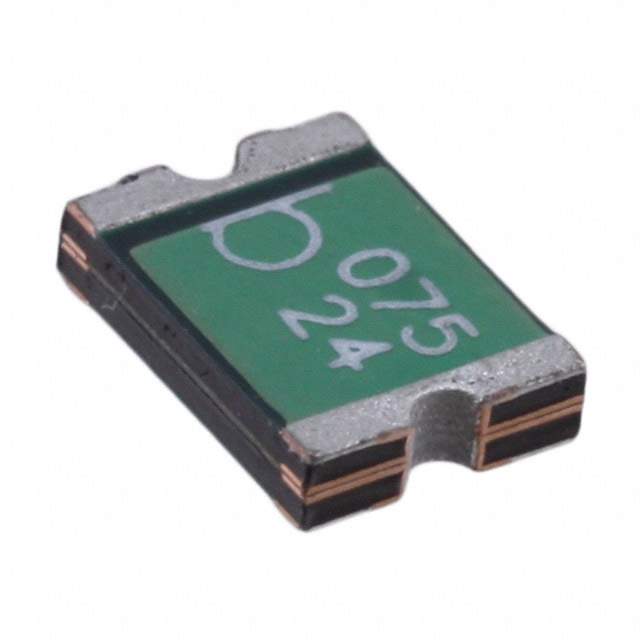

0ZCC0260AF2B Real Image
Same model may have multiple batches, images only for reference.

0ZCC0260AF2B

Part No 0ZCC0260AF2B
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 13.2V 2.6A 1812  /  Polymeric PTC Resettable Fuse 13.2V 2.6 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
0ZCC0260AF2B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Bel Fuse Inc.
Series 0ZCC
Package Tape & Reel
Product Status Obsolete
Type Polymeric
Voltage - Max 13.2V
Current - Max 100 A
Current - Hold (Ih) (Max) 2.6 A
Current - Trip (It) 5 A
Time to Trip 5 s
Resistance - Initial (Ri) (Min) 15 mOhms
Resistance - Post Trip (R1) (Max) 50 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric), Concave
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.061" (1.55mm)
Approval Agency cURus, TUV
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 507-1511-1,507-1511-2,0ZCC0260AF,507-1511-6
Standard Package 1,500
Win Source Part Number 1159570-0ZCC0260AF2B
Ultra Librarian 3D Model Ultra Librarian 0ZCC0260AF2B CAD Model

Description

The 1159570-0ZCC0260AF2B is a PTC resettable fuse from Bel Fuse Inc.

  • Voltage Rating: 13.2V
  • Current Rating: 100A
  • Current Hold (Ih): 2.6A
  • Current Trip (It): 5A
  • Time to Trip: 5s
  • Packaging: Tape and Reel
  • Standard Package: 1500
  • Mounting Type: SMD (SMT)
  • Package/Case: 1812 (4532 Metric), Concave
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
