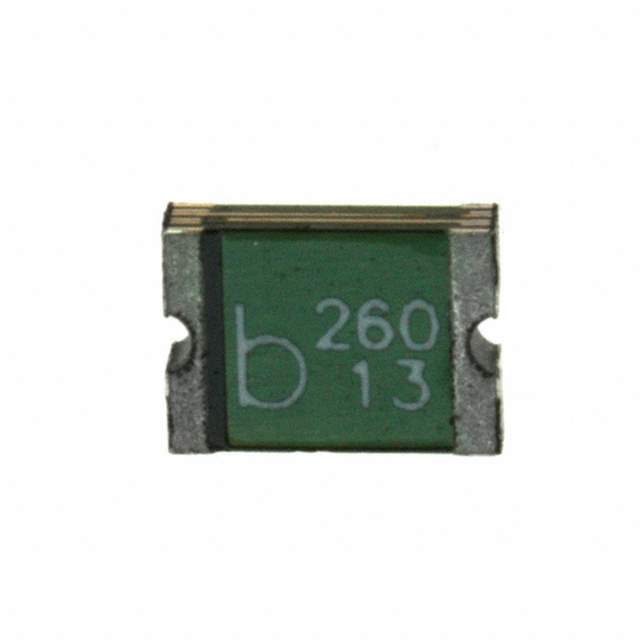

Same model may have multiple batches, images only for reference.

0ZCC0050FF2C

Name: 0ZCC0050FF2C
Brand: Bel Fuse Inc.
SKU: 980200
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0ZCC0050FF2C
Manufacturer	Bel Fuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 16V 500MA 1812 / Polymeric PTC Resettable Fuse 16V 500 mA Ih Surface Mount 1812 (4532 Metric)
Datasheet	0ZCC0050FF2C Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	Bel Fuse Inc.
Series	0ZCC
Package	Tape & Reel
Product Status	Obsolete
Type	Polymeric
Voltage - Max	16V
Current - Max	40 A
Current - Hold (Ih) (Max)	500 mA
Current - Trip (It)	1 A
Time to Trip	150 ms
Resistance - Initial (Ri) (Min)	150 mOhms
Resistance - Post Trip (R1) (Max)	1 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	1812 (4532 Metric)
Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max)	0.035" (0.90mm)
Approval Agency	cURus, TUV
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	507-1361-6,507-1361-2,507-1361-1
Standard Package	2,000
Win Source Part Number	980200-0ZCC0050FF2C
Ultra Librarian 3D Model	Ultra Librarian 0ZCC0050FF2C CAD Model

Alternative Products

Description

The 980200-0ZCC0050FF2C is a polymeric PTC resettable fuse designed for circuit protection.

Voltage Rating: 16V
Current Rating: 40A
Current Hold: 500mA
Current Trip: 1A
Time to Trip: 150ms
Resistance: 150mΩ
Mounting: SMD (SMT)
Thickness: 0.035 inches
Packaging: Tape and reel
Standard Package: 2000
Operating Temperature Range: -40°C to 85°C
Approval: cURus and TUV
Status: Obsolete
