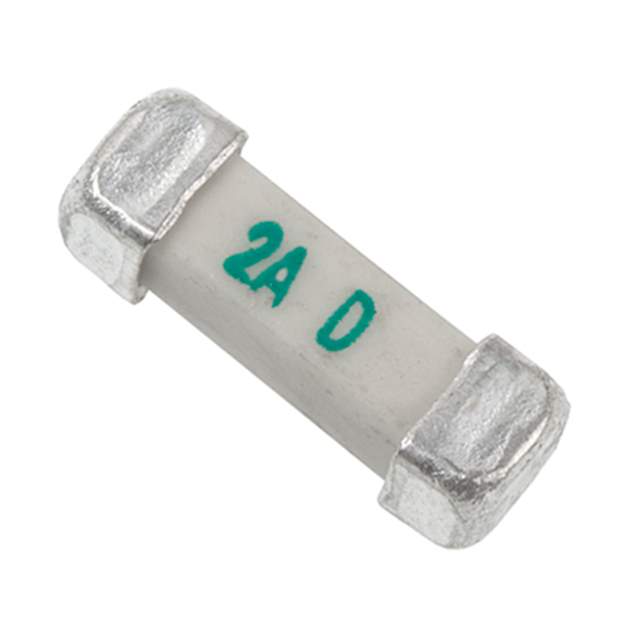

0678D0500-02 Real Image
Same model may have multiple batches, images only for reference.

0678D0500-02

Part No 0678D0500-02
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE SMT 3912 FAST 250V 500MA / 500 mA 350 V AC 250 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
0678D0500-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series 0678D
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - AC 350 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A
Melting I2t 0.03
Approval Agency AEC-Q200, cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.386" L x 0.120" W x 0.120" H (9.80mm x 3.05mm x 3.05mm)
DC Cold Resistance 0.66 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 507-2256-6,507-2256-1,507-2256-2
Standard Package 2,000
Win Source Part Number 1040821-0678D0500-02
Ultra Librarian 3D Model Ultra Librarian 0678D0500-02 CAD Model

Description

The 1040821-0678D0500-02 is a fast-blow board mount fuse designed for circuit protection.

  • Voltage Rating: 350V AC and 250V DC
  • Breaking Capacity @ Rated Voltage: 100A
  • Melting I2t: 0.03
  • DC Cold Resistance: 0.66 ohms
  • Current Rating: 500mA
  • Mounting: SMD (SMT)
  • Packaging: Tape and reel
  • Standard Package: 2000
  • Operating Temperature Range: -55°C to 125°C
  • Approvals: AEC-Q200 and cURus
