Same model may have multiple batches, images only for reference.

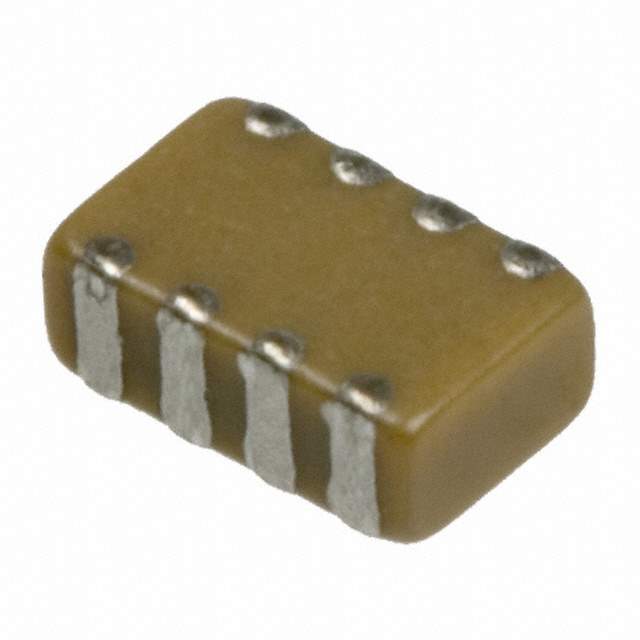

W2L14C105MAT1A Real Image
Same model may have multiple batches, images only for reference.

W2L14C105MAT1A

Part No W2L14C105MAT1A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 1UF 4V X7R 0508 / Cap Ceramic 1uF 4V X7R 20% Pad SMD 0508 125°C T/R
Datasheet
W2L14C105MAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series IDC
Packaging Reel package
Capacitance 1μF
Tolerance ±20%
Voltage Rating DC 4V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features Low ESL (Multi-Terminal)
Applications Bypass, Decoupling
Mounting Surface Mount, MLCC
Package 0508 (1220 Metric)
Dimension 0.050" L x 0.080" W (1.27mm x 2.03mm)
Thickness (Maximum) 0.037" (0.95mm)
Win Source Part Number 778114-W2L14C105MAT1A
Popularity Medium
Supply and Demand Status Limited
Family Name W2L
Introduction Date December 31, 2004
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian W2L14C105MAT1A CAD Model

Description

AVX Corporation's 778114-W2L14C105MAT1A is a low ESL (Multi-Terminal) capacitor from the W2L series.

  • Series: W2L
  • Capacitance: 1μF
  • Tolerance: ±20%
  • Voltage Rating DC: 4V
  • Temperature Coefficient: X7R
  • Mounting: Surface Mount, MLCC
  • Package: 0508 (1220 Metric)
  • Dimension: 0.050" L x 0.080" W (1.27mm x 2.03mm)
  • ECCN: EAR99
