Same model may have multiple batches, images only for reference.

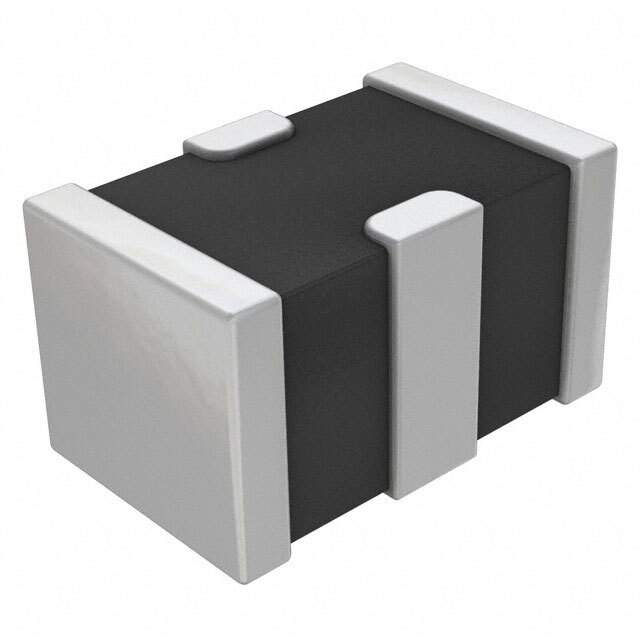

V2AF109A200Y2EDP Real Image
Same model may have multiple batches, images only for reference.

V2AF109A200Y2EDP

Part No V2AF109A200Y2EDP
Manufacturer AVX Corporation
Catalog TVS - Varistors, MOVs
Description VARISTOR 12.7V 30A 0805 / Var MLV 6.4VAC/9VDC 30A 12.7V 0805 SMD Automotive T/R
Datasheet
V2AF109A200Y2EDP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer AVX Corporation
Series TransGuard
Packaging Reel package
Varistor Voltage (Minimum) 10.8V
Varistor Voltage (Typ) 12.7V
Varistor Voltage (Maximum) 14.61V
Current - Surge 30A
Energy 0.10J
Number of Circuits 1
Maximum AC Volts 6.4VAC
Maximum DC Volts 9VDC
Capacitance @ Frequency 575pF @ 1MHz
Operating Temperature Range -55°C ~ 125°C (TA)
Mounting Surface Mount, MLCV
Package 0805
Win Source Part Number 768305-V2AF109A200Y2EDP
Popularity Medium
Supply and Demand Status Limited
Family Name V2AF
Introduction Date July 31, 2013
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian V2AF109A200Y2EDP CAD Model

Description

The V2AF109A200Y2EDP is a TransGuard series varistor component manufactured by AVX Corporation.

  • Category: Circuit Protection
  • Number of Circuits: 1
  • Win Source Part Number: 768305-V2AF109A200Y2EDP
  • Varistor Voltage (Typ): 12.7V
  • Maximum DC Volts: 9VDC
  • Energy: 0.10J
  • Varistor Voltage (Minimum): 10.8V
