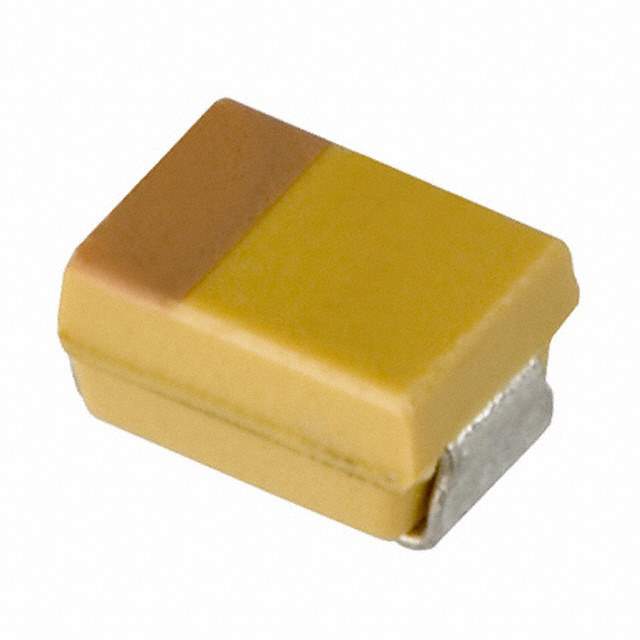

TPSR105M025R2500 Real Image
Same model may have multiple batches, images only for reference.

TPSR105M025R2500

Part No TPSR105M025R2500
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 1UF 25V 20% 0805 / Cap Tant Solid 1uF 25V R CASE 20% (2.05 X 1.3 X 1.2mm) Inward L SMD 2012-12 2.5 Ohm 125°C T/R
Datasheet
TPSR105M025R2500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel package
Capacitance 1μF
Tolerance ±20%
Voltage Rating DC 25V
Type Molded
ESR (Equivalent Series Resistance) 2.5 Ohm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 0805
Dimension 0.081" L x 0.051" W (2.05mm x 1.30mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Size Code R
Features General
Win Source Part Number 798335-TPSR105M025R2500
Popularity Medium
Supply and Demand Status Limited
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPSR105M025R2500 CAD Model

Description

The AVX Corporation TPS series capacitor is a molded type capacitor that comes in an 0805 package.

  • Capacitance: 1μF
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 2.5 Ohm
  • Voltage Rating DC: 25V
  • Operating Temperature Range: -55°C to 125°C
  • Manufacturer Size Code: R
  • Family Name: TPS
  • Halogen-Free Compliant: Yes
  • Estimated EOL Date: 2028
