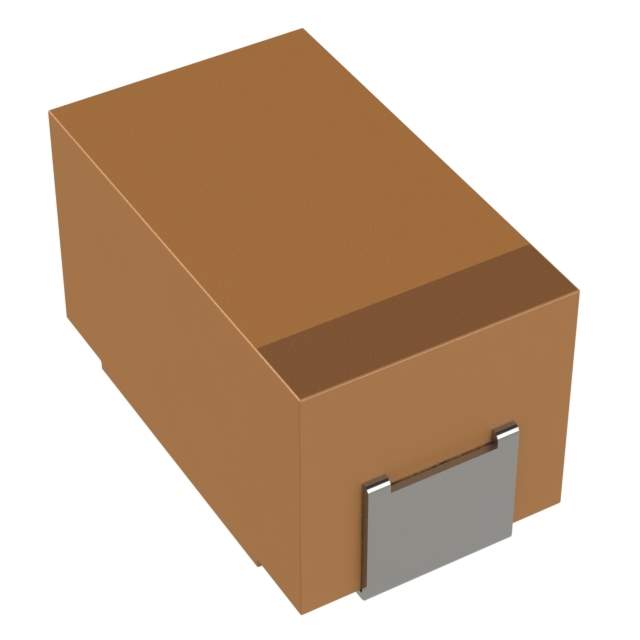

TPSE476M020R0070 Real Image
Same model may have multiple batches, images only for reference.

TPSE476M020R0070

Part No TPSE476M020R0070
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 47UF 20V 20% 2917 / Cap Tant Solid 47uF 20V E CASE 20% (7.3 X 4.3 X 4.1mm) Inward L SMD 7343-43 0.07 Ohm 125°C T/R
Datasheet
TPSE476M020R0070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel package
Capacitance 47μF
Tolerance ±20%
Voltage Rating DC 20V
Type Molded
ESR (Equivalent Series Resistance) 70 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Manufacturer Size Code E
Features General
Win Source Part Number 798320-TPSE476M020R0070
Popularity Medium
Supply and Demand Status Limited
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPSE476M020R0070 CAD Model

Description

The AVX Corporation 798320-TPSE476M020R0070 is a TPS series capacitor.

  • Capacitance: 47μF
  • Voltage Rating: 20V
  • Package Size: 2917 (7343 Metric)
  • Operating Temperature: -55 °C to 125 °C
  • Halogen-Free: Yes
