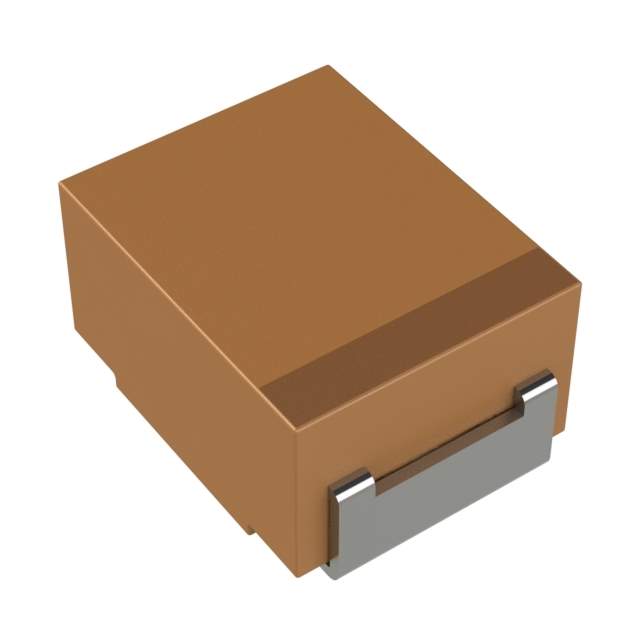

The TPSB226K010R050 is a tantalum capacitor manufactured by AVX Corporation. It is part of the TPS series, well-regarded for its robustness and reliability in electronic circuits. This capacitor is designed for surface mount applications (SMD) and comes in a B case size, which makes it suitable for designs with limited board space. It is primarily used for general-purpose applications that require stable capacitance and reliable performance over a broad range of temperatures.

Applications:

• Decoupling: Provides stable voltage for integrated circuits, reducing noise.
• Filtering: Smooths voltage fluctuations in power supplies.
• Bypass: Shunts unwanted high-frequency signals to ground.
• Timing Circuits: Suitable for timing applications requiring stable capacitance.
• General Purpose Applications: Versatile component for various circuit functions.

Features:

• Surface Mount Device (SMD): Facilitates automated assembly.
• Solid Tantalum Construction: Enhances reliability and stability.
• Compact B Case Size: Suitable for space-constrained designs.
• Stable Capacitance: Maintains consistent performance across temperature variations.
• Low Equivalent Series Resistance (ESR): Minimizes power losses.

Benefits:

• Improved Circuit Performance: Ensures stable and reliable operation.
• Reduced Board Space: Compact size enables denser circuit designs.
• Enhanced Reliability: Solid tantalum construction provides long-term stability.
• Simplified Manufacturing: Surface mount design is compatible with automated assembly lines.
• Lower Power Consumption: Low ESR reduces heat generation and improves efficiency.

Additional Details:

The TPSB226K010R050 has a capacitance of 22µF (microfarads) with a tolerance of ±10%. The rated voltage is 10V (volts). It has an ESR (Equivalent Series Resistance) of 0.5 ohms at 100kHz. The operating temperature range typically spans from -55°C to +125°C. This capacitor is compliant with RoHS (Restriction of Hazardous Substances) standards, ensuring it meets environmental safety requirements. The specific dimensions for the B case size should be confirmed with the datasheet to ensure accurate PCB footprint design. Tantalum capacitors are sensitive to reverse voltage and overvoltage conditions, so it’s crucial to implement appropriate protection measures in the circuit design.
