Same model may have multiple batches, images only for reference.

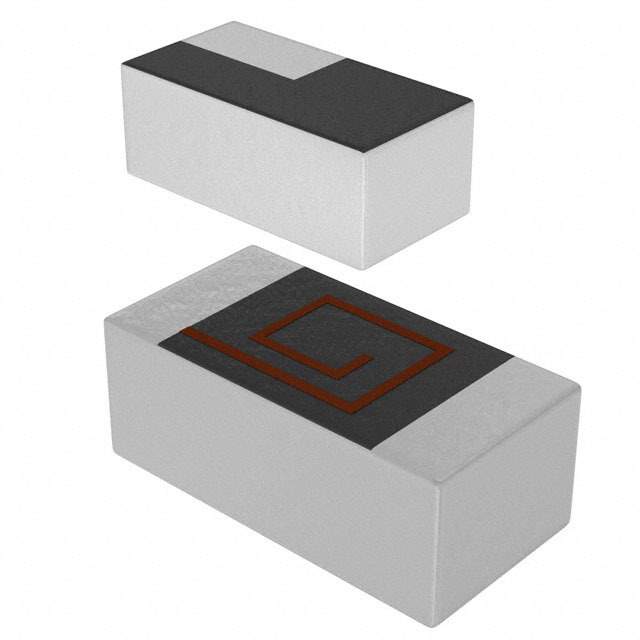

L0603100JGWTR Real Image
Same model may have multiple batches, images only for reference.

L0603100JGWTR

Part No L0603100JGWTR
Manufacturer AVX Corporation
Catalog Fixed Inductors
Description FIXED IND 10NH 300MA 450 MOHM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer AVX Corporation
Packaging Tape and Reel
Type Thin Film
Material - Core Non-Magnetic
Inductance 10nH
Tolerance ±5%
Current Rating (Amps) 300mA
Shielding Unshielded
DC Resistance (DCR) 450mOhm Max
Q at Freq 28 at 450MHz
Frequency - Self Resonant 3.5GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 450MHz
Mounting Style SMD
Manufacturer Package 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Parts Dimension 0.063" L x 0.032" W (1.60mm x 0.81mm)
Height - Seated (Maximum) 0.028" (0.71mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 724408-L0603100JGWTR
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian L0603100JGWTR CAD Model

Description

The AVX Corporation 724408-L0603100JGWTR is a thin film inductor with an inductance of 10nH and a tolerance of ±5%.

  • Inductance: 10nH
  • Tolerance: ±5%
  • Core: Non-magnetic
  • Shielding: Unshielded
  • DC Resistance: 450mOhm Max
  • Self-Resonant Frequency: 3.5GHz
  • Packaging: Tape and reel
  • Supplier Device Package: 0603 (1608 Metric)
  • Current Rating: 300mA
  • Q @ Freq: 28 @ 450MHz
  • Temperature Range: -55°C to 125°C
  • Height: 0.028" (0.71mm)
  • Manufacturer: AVX Corporation
  • Manufacturer Package: 0603 (1608 Metric)
  • Manufacturer Pack Quantity: 3,000
  • Supply and Demand Status: Balanced
  • Popularity: Low
