Same model may have multiple batches, images only for reference.

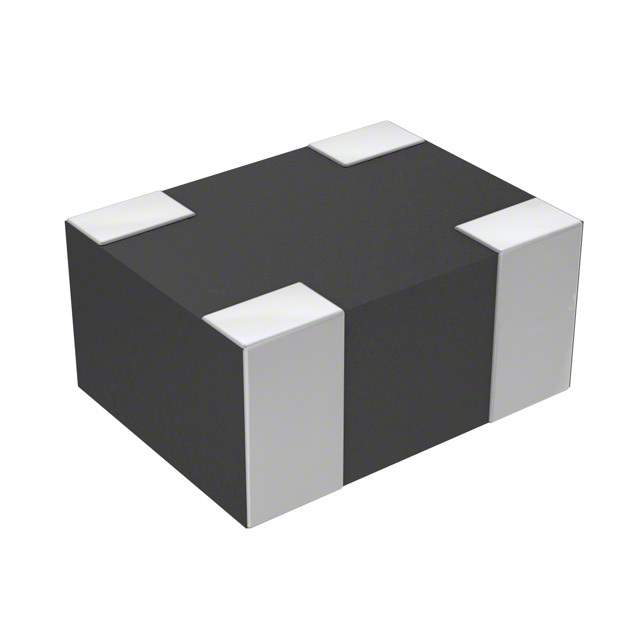

CP0805B1441AWTR Real Image
Same model may have multiple batches, images only for reference.

CP0805B1441AWTR

Part No CP0805B1441AWTR
Manufacturer AVX Corporation
Catalog RF Directional Coupler
Description DIRECTIONAL COUPLER 1441MHZ 0805
Datasheet
CP0805B1441AWTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 1.429GHz to 1.453GHz
Coupling Factor 17 ± 1dB
Applications PDC
Insertion Loss 0.25dB
Maximum Power Dissipation 3W
Isolation -28dB
Return Loss -24dB
Case / Package 0805
Win Source Part Number 202726-CP0805B1441AWTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CP0805B1441AWTR CAD Model

Description

CP0805B1441AWTR

The CP0805B1441AWTR is an innovative electronic component that stands out in the domain of wireless applications. Its integration into modern devices facilitates enhanced connectivity and performance, driven by its exceptional design and reliability.

  • Applications:
    • Bluetooth devices
    • Internet of Things (IoT) applications
    • Wireless sensor networks
  • Features and Benefits:
    • Reliable signal transmission with low interference
    • Compact 0805 size, suitable for various layouts
    • Operates efficiently across a range of environmental conditions
  • Additional Details:
    • Engineered for precision and consistency
    • Meets rigorous quality assurance parameters
