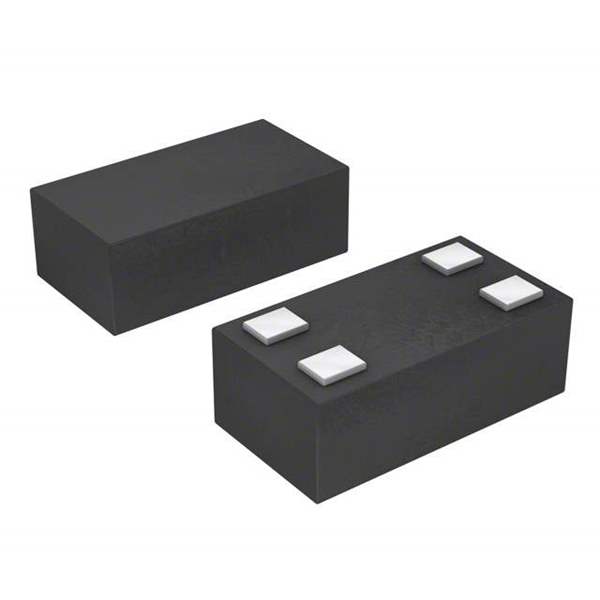

CP0603A1960BNTR Real Image
Same model may have multiple batches, images only for reference.

CP0603A1960BNTR

Part No CP0603A1960BNTR
Manufacturer AVX Corporation
Catalog RF Directional Coupler
Description DIRECTIONAL COUPLER 1960MHZ 0603
Datasheet
CP0603A1960BNTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 1.93GHz to 1.99GHz
Coupling Factor 16dB
Applications PCS
Insertion Loss 0.25dB
Maximum Power Dissipation 3W
Isolation -33dB
Return Loss 24dB
Case / Package 0603
Win Source Part Number 039946-CP0603A1960BNTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CP0603A1960BNTR CAD Model

Description

CP0603A1960BNTR

The CP0603A1960BNTR is an innovative solution for applications requiring exact frequency modulation and high stability.

Applications

  • Medical devices
  • Consumer electronics
  • Industrial control systems
  • Data communication

Features and Benefits

  • High Precision: Maintains accurate frequency responses across different usage scenarios.
  • Reliable Performance: Built to deliver consistent performance with minimal errors.
  • Compact Size: Ideal for designs requiring minimal space.

The CP0603A1960BNTR is renowned for its reliability and efficiency, crucial for both consumer and industrial applications.
