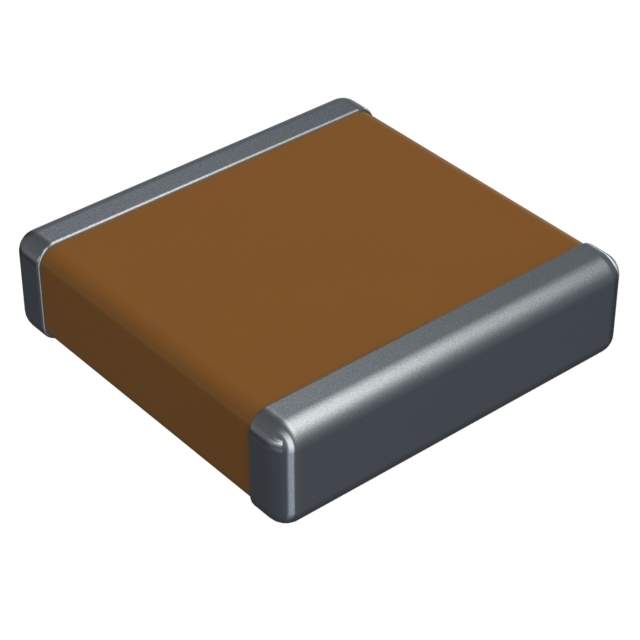

The 22251C105KAT2A is a ceramic capacitor manufactured by AVX Corporation. It is a multi-layer ceramic capacitor (MLCC) with a capacitance value of 1.0 µF (microfarad), a voltage rating of 100 V, and a ±10% capacitance tolerance. It features a X7R dielectric, which provides stable performance over a wide range of temperatures and voltages. The capacitor is designed for surface mount applications and comes in a 2225 case size.

Applications

• Bypass capacitors in power supplies
• Decoupling capacitors in digital circuits
• Filtering applications
• Snubber circuits
• Timing circuits

Features

• High capacitance value: 1.0 µF
• High voltage rating: 100 V
• X7R dielectric: stable performance over temperature and voltage
• Surface mount design: 2225 case size
• ±10% capacitance tolerance
• RoHS compliant

Benefits

• Effective noise filtering and decoupling
• Stable performance in varying operating conditions
• High reliability
• Compact size for high-density circuit boards
• Easy assembly with surface mount technology
• Compliance with environmental regulations

Additional Details

The 22251C105KAT2A capacitor utilizes a multi-layer ceramic construction to achieve its high capacitance value in a small package size. The X7R dielectric ensures that the capacitance remains relatively stable over a temperature range of -55°C to +125°C and with variations in applied voltage. The 2225 case size refers to the physical dimensions of the capacitor (0.22 inches x 0.25 inches). This MLCC is designed for automated assembly processes and can withstand high soldering temperatures. It is suitable for a wide range of electronic applications where stable and reliable capacitance is required. The dissipation factor is typically less than 2.5%.
