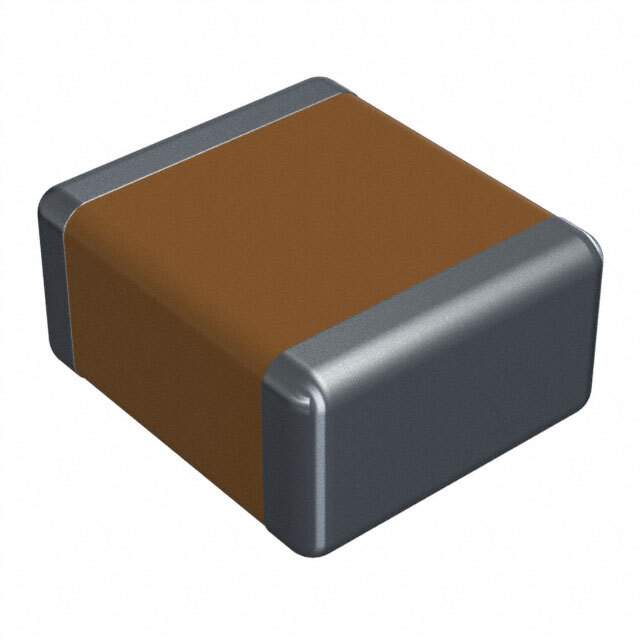

The 22205C106KAT is a ceramic capacitor manufactured by AVX Corporation, designed for surface mount applications. This capacitor is characterized by its high capacitance value, stable performance, and compact size, making it suitable for a wide range of electronic circuits.

Applications

• Bypass Capacitors: Used to filter noise and stabilize voltage in power supplies and digital circuits.
• Decoupling Capacitors: Placed near integrated circuits to provide local energy storage and reduce voltage fluctuations.
• Filtering Applications: Employed in signal conditioning circuits to remove unwanted frequencies.
• Timing Circuits: Used in oscillator and timing circuits for accurate timing control.
• Consumer Electronics: Integrated into smartphones, tablets, and other portable devices.

Features

• High Capacitance: Offers a capacitance value of 10µF, providing ample energy storage.
• X7R Dielectric: Provides stable capacitance over temperature and voltage variations.
• Surface Mount Design: Suitable for automated assembly processes.
• Compact Size: Allows for high-density circuit board designs.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Improved Circuit Stability: Provides stable voltage and reduces noise for reliable operation.
• Enhanced Performance: Improves the performance of digital and analog circuits.
• Reduced Size and Weight: Allows for smaller and lighter electronic devices.
• Cost-Effective Solution: Offers a balance of performance and affordability.
• Simplified Manufacturing: Compatible with automated assembly processes.

Additional Details

The 22205C106KAT features an X7R dielectric, which provides a capacitance variation of ±15% over the operating temperature range of -55°C to +125°C. Its voltage rating is typically 25V to 50V, depending on the specific application requirements. The capacitor is available in a 2220 case size, which measures 0.22 inches in length and 0.20 inches in width. It is designed for reflow soldering and is available in tape and reel packaging for automated placement.
