Same model may have multiple batches, images only for reference.

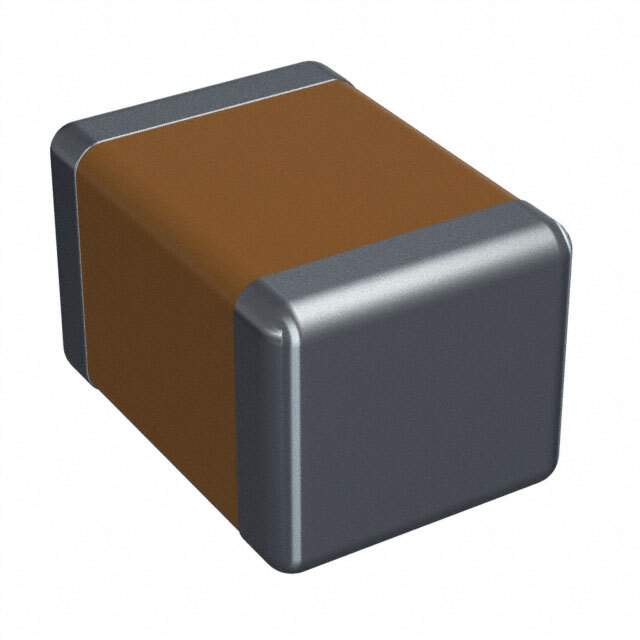

1812HC102KAT1A Real Image
Same model may have multiple batches, images only for reference.

1812HC102KAT1A

Part No 1812HC102KAT1A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 1000PF 3KV X7R 1812
Datasheet
1812HC102KAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel package
Capacitance 1000pF
Tolerance ±10%
Voltage Rating DC 3000V (3kV)
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 1812 (4532 Metric)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Maximum) 0.100" (2.54mm)
Win Source Part Number 760671-1812HC102KAT1A
Popularity Medium
Supply and Demand Status Limited
Family Name 1812
Introduction Date June 30, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 1812HC102KAT1A CAD Model

Description

The AVX Corporation 760671-1812HC102KAT1A is a surface mount capacitor.

  • Capacitance: 1000pF
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Voltage Rating DC: 3000V (3kV)
  • Package: 1812 (4532 Metric)
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Thickness: 0.100" (2.54mm)
  • Halogen Free: Yes
  • EOL Date: 2027
