Same model may have multiple batches, images only for reference.

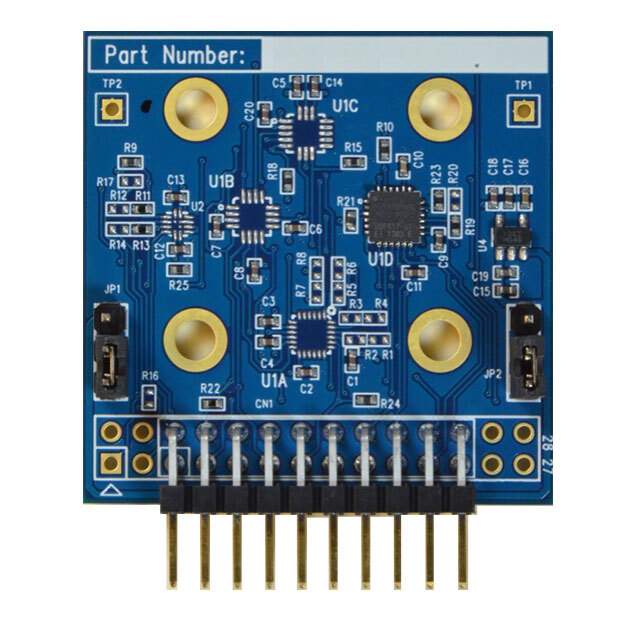

EV_ICM-20602 Real Image
Same model may have multiple batches, images only for reference.

EV_ICM-20602

Part No EV_ICM-20602
Manufacturer TDK InvenSense
Catalog Evaluation Boards - Sensors
Description ICM-20602 EVALUATION BOARD
Datasheet
EV_ICM-20602 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer TDK InvenSense
Sensor Type Accelerometer, Gyroscope, 3 Axis
Sensing Range ±2g, 4g, 8g, 16g, ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec
Interface I2C, SPI
Operating Supply Voltage 1.71 V ~ 3.45 V
Supplied Contents Board(s)
Utilized IC / Part ICM-20602
Win Source Part Number 776362-EV_ICM-20602
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EV_ICM-20602 CAD Model

Description

The TDK InvenSense ICM-20602 is a development board that comes with a board, and it is compatible with both I2C and SPI interfaces. It operates at a supply voltage between 1.71V and 3.45V.

  • Accelerometer Sensing Range: ±2g, 4g, 8g, 16g
  • Gyroscope Sensing Range: ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec
  • Sensors: 3-axis
  • Device Type: Embedded
  • Applications: Development Boards, Kits, and Programmers
  • Supply and Demand Status: Balanced
