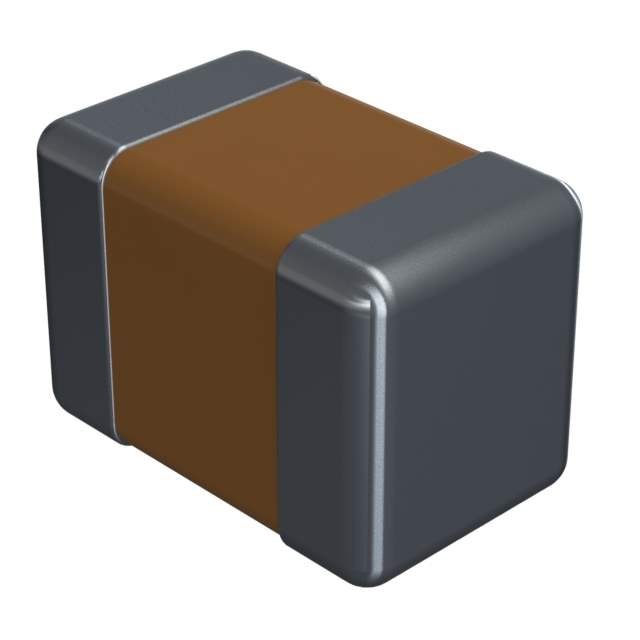

0805ZC105JAT2A Real Image
Same model may have multiple batches, images only for reference.

0805ZC105JAT2A

Part No 0805ZC105JAT2A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description General Specifications | CAP CER 1UF 10V X7R 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel
Capacitance 1μF
Tolerance ±5%
Voltage - Rated 10V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Style SMT, MLCC
Manufacturer Package 0805
Parts Dimension 0.079" L x 0.049" W (2.01mm x 1.25mm)
Thickness (Maximum) 0.055" (1.40mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120779-0805ZC105JAT2A
Manufacturer Homepage www.avx.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0805ZC105JAT2A CAD Model

Description

AVX Corporation's 0805 MLCC capacitor is a general-purpose electronic component that can be used in a wide range of applications.

  • Capacitance: 1μF
  • Voltage Rating: 10V
  • Temperature Range: -55°C to 125°C
  • Temperature Coefficient: X7R
  • Tolerance: ±5%
  • Packaging: Reel
  • Thickness: 0.055" (1.40mm)
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.079" L x 0.049" W (2.01mm x 1.25mm)
