Same model may have multiple batches, images only for reference.

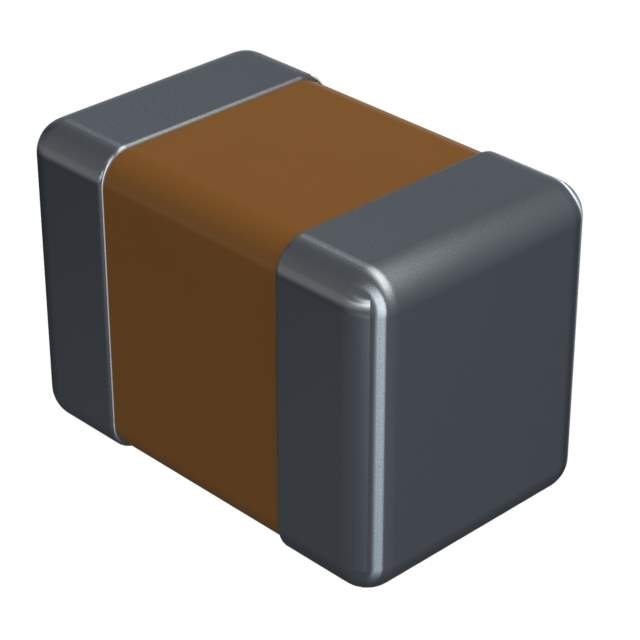

0805YD684KAT2A Real Image
Same model may have multiple batches, images only for reference.

0805YD684KAT2A

Part No 0805YD684KAT2A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 0.68UF 16V X5R 0805
Datasheet
0805YD684KAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 15 Weeks
Features ±10% 16V Ceramic Capacitor X5R 0805 (2012 Metric)
Manufacturer AVX Corporation
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, MLCC
Package 0805 (2012 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 0805YD684KAT2A/3K, 0805YD684KAT2A/2K, 478-1410-1, 478-1410-2, 0805YD684KAT2A\\3K, 478-1410-6
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904752-0805YD684KAT2A
Ultra Librarian 3D Model Ultra Librarian 0805YD684KAT2A CAD Model

Description

AVX Corporation's ceramic capacitor is a high-quality electronic component that is ideal for use in a wide range of applications. This ±10% 16V capacitor is designed to operate in a temperature range of -55°C to 85°C.

  • Package Type: 0805 (2012 Metric)
  • Mounting: surface mountable
  • Package: reel - TR
  • Category: Capacitors
  • Supply and demand status: balanced
  • Package contains: 3000 pieces
  • MSL level: 1 (Unlimited)
  • Estimated production lead time: 15 weeks
  • REACH: unaffected
  • HTSUS: 8532.24.0020
