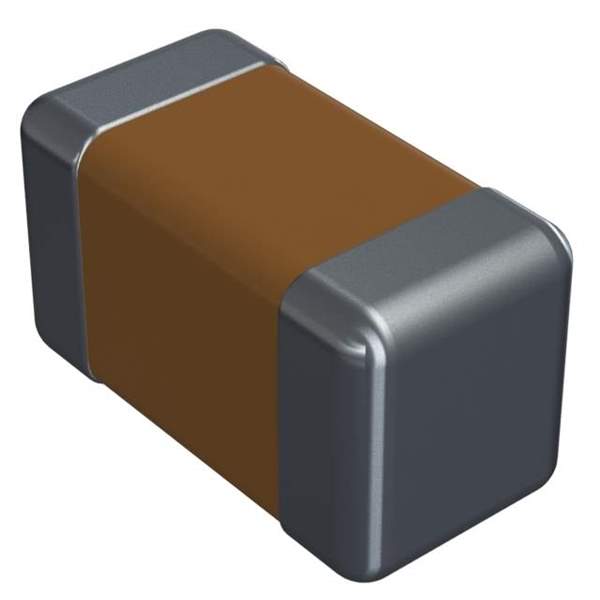

The 0603ZC224JAT2A is a multilayer ceramic capacitor (MLCC) manufactured by AVX Corporation. This capacitor is designed for surface mount applications and offers reliable performance in a compact 0603 package.

Applications

• Bypass and Decoupling in Digital Circuits
• Filtering in Power Supplies
• Signal Conditioning
• General Purpose Applications
• Consumer Electronics
• Mobile Devices

Features

• Case Size: 0603 (EIA 0603 Metric 1608)
• Capacitance: 0.22 µF (Microfarads)
• Voltage Rating: 10V
• Dielectric Material: X7R
• Tolerance: ±5%
• Termination: Nickel Barrier with Tin Plating
• RoHS Compliant

Benefits

• Compact Size: 0603 package is ideal for space-constrained applications.
• High Capacitance Value: 0.22µF provides effective bypassing and decoupling.
• Stable Performance: X7R dielectric offers reasonable capacitance stability over temperature and voltage.
• Reliable Operation: AVX is a reputable manufacturer known for quality components.
• RoHS Compliant: Meets environmental regulations.
• Cost-Effective: Provides a good balance of performance and cost.

Additional Details

The 0603ZC224JAT2A utilizes X7R dielectric, which provides a stable capacitance over a temperature range of -55°C to +125°C, with a capacitance variation of ±15%. The nickel barrier termination ensures good solderability and prevents solder leaching. This capacitor is suitable for applications where a relatively high capacitance is needed in a small form factor.
