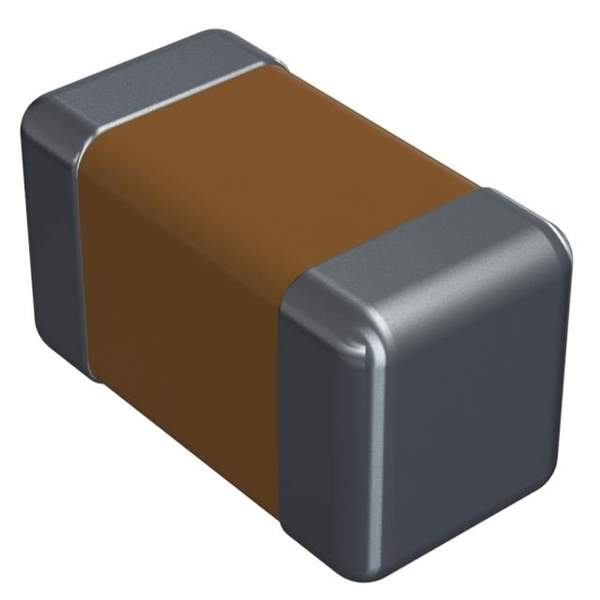

The 06035A101FAT2A is a ceramic capacitor manufactured by AVX Corporation. It is a surface-mount multilayer ceramic capacitor (MLCC) designed for a wide range of applications requiring stable capacitance and small size.

Applications

• Bypass Capacitors
• Decoupling Capacitors
• Filtering Applications
• Timing Circuits
• RF and Wireless Communication Devices
• Mobile Phones and Tablets
• Consumer Electronics

Features

• Case Size: 0603 (EIA 0603 Metric 1608)
• Capacitance: 100 pF (Picofarads)
• Voltage Rating: 50V
• Dielectric Material: C0G (NP0)
• Tolerance: ±1%
• Termination: Nickel Barrier with Tin Plating
• RoHS Compliant

Benefits

• High Stability: C0G dielectric provides excellent capacitance stability over temperature and voltage variations.
• Low ESR (Equivalent Series Resistance): Minimizes energy loss and improves circuit performance.
• High Q Factor: Ensures minimal signal distortion in high-frequency applications.
• Small Size: 0603 package allows for high-density circuit designs.
• Reliable Performance: AVX is a trusted manufacturer known for high-quality components.
• RoHS Compliant: Environmentally friendly and complies with RoHS directives.

Additional Details

The 06035A101FAT2A capacitor is designed for surface mount technology (SMT) assembly. The C0G dielectric offers a very stable capacitance with minimal change over temperature (0 ±30 ppm/°C) and voltage. This makes it suitable for critical timing circuits and precision filtering applications. The nickel barrier termination ensures excellent solderability and resistance to leaching during soldering processes. It's commonly used in applications where precision and stability are paramount.
