Same model may have multiple batches, images only for reference.

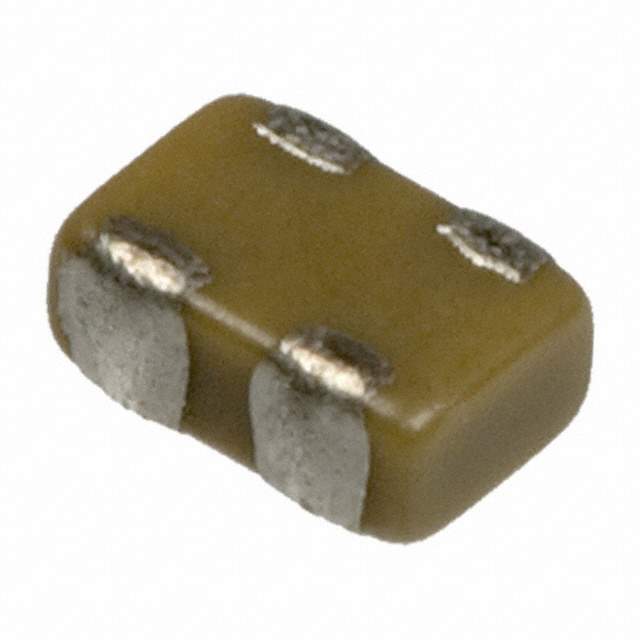

W1A23C102MAT2A Real Image
Same model may have multiple batches, images only for reference.

W1A23C102MAT2A

Part No W1A23C102MAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Capacitor Networks, Arrays
Description CAP ARRAY 1000PF 25V X7R 0504  /  1000pF Isolated Capacitor 2 Array 25 V X7R 0504 (1410 Metric)
Datasheet
W1A23C102MAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Capacitor Networks, Arrays
Mfr KYOCERA AVX
Series IPC
Package Tape & Reel (TR)
Capacitance 1000pF
Tolerance ±20%
Voltage - Rated 25 V
Dielectric Material Ceramic
Number of Capacitors 2
Circuit Type Isolated
Temperature Coefficient X7R
Mounting SMD (SMT)
Package / Case 0504 (1410 Metric)
Supplier Device Package 0405 (1012 Metric)
Dimension 0.054" L x 0.039" W (1.37mm x 1.00mm)
Height - Seated (Max) 0.026" (0.66mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 4,000
Win Source Part Number 1104340-W1A23C102MAT2A
Ultra Librarian 3D Model Ultra Librarian W1A23C102MAT2A CAD Model

Description

The IPC series from KYOCERA AVX is a capacitor network designed for surface mount applications.

  • Capacitors: 2
  • Capacitance: 1000pF each
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Circuit Type: Isolated
  • Dielectric Material: Ceramic
  • Package Type: 0504 (1410 Metric)
  • Height Seated: 0.026" (0.66mm)
  • Operating Temperature: -55°C to 125°C
  • Packaging: Tape & Reel
  • Standard Package: 4,000
  • Dimension: 0.054" L x 0.039" W (1.37mm x 1.00mm)
  • Compliance: EAR99
  • REACH: Unaffected
