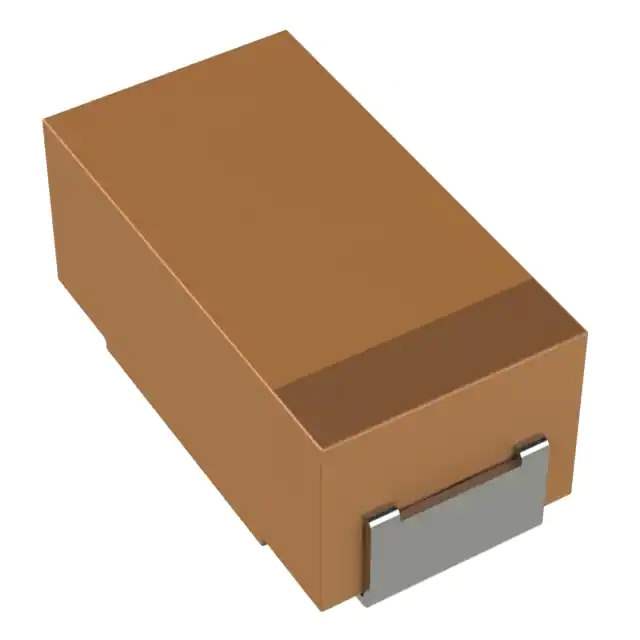

TPSC226M025R0400 Real Image
Same model may have multiple batches, images only for reference.

TPSC226M025R0400

Part No TPSC226M025R0400
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20% 25V 2312
Datasheet
TPSC226M025R0400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr AVX Corp/Kyocera Corp
Series TPS
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
Type Molded
ESR (Equivalent Series Resistance) 400mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2312 (6032 Metric)
Size / Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max) 0.110" (2.80mm)
Manufacturer Size Code C
Features General Purpose
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 742803-TPSC226M025R0400
Ultra Librarian 3D Model Ultra Librarian TPSC226M025R0400 CAD Model

Description

The 742803-TPSC226M025R0400 is a tantalum capacitor from AVX Corp/Kyocera Corp.

  • Category: Capacitors - tantalum capacitors
  • Series: TPS
  • Type: Molded
  • Package: Tape and reel
  • Size: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Seated Height: 0.110" (2.80mm)
  • Standard Package: 500 pieces
  • Capacitance: 22 μF
  • Tolerance: ±20%
  • Rated Voltage: 25V
  • ESR: 400mOhm
  • Mounting: Surface mountable
  • Temperature Range: -55°C to 125°C
