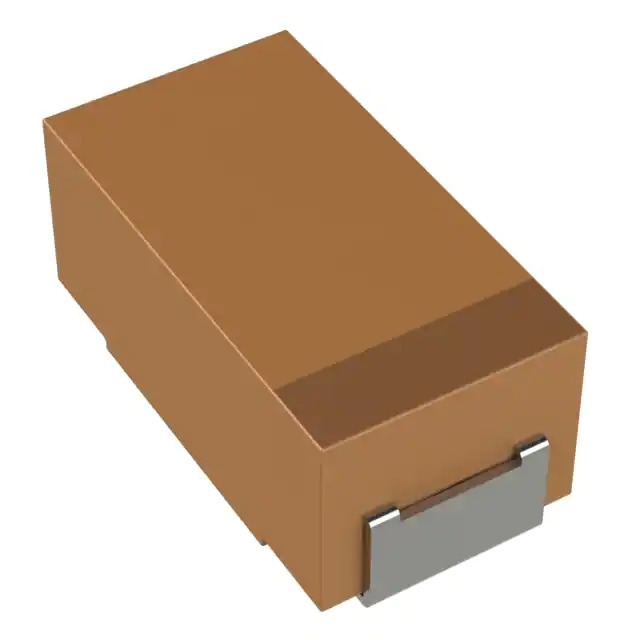

TPSC226K020R0100 AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

TPSC226K020R0100

Part No TPSC226K020R0100
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 20V 2312 / 22 µF Molded Tantalum Capacitors 20 V 2312 (6032 Metric) 100mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr KYOCERA AVX
Series TPS
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 20 V
Type Molded
ESR (Equivalent Series Resistance) 100mOhm
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Surface Mount
Package / Case 2312 (6032 Metric)
Size / Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max) 0.110" (2.80mm)
Lead Spacing -
Manufacturer Size Code C
Features General Purpose
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 1359827-TPSC226K020R0100
Ultra Librarian 3D Model Ultra Librarian TPSC226K020R0100 CAD Model

Description

The KYOCERA AVX TPS series capacitors are general-purpose tantalum capacitors with a capacitance of 22 µF and a voltage rating of 20 V.

  • Capacitance: 22 µF
  • Voltage Rating: 20 V
  • Series: TPS
  • Package Size: 2312 (6032 Metric)
  • Dimensions: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Seated Height: 0.110" (2.80mm)
  • Tolerance: ±10%
  • ESR: 100mOhm
  • Temperature Range: -55°C to 125°C
  • Mounting Type: Surface mount
