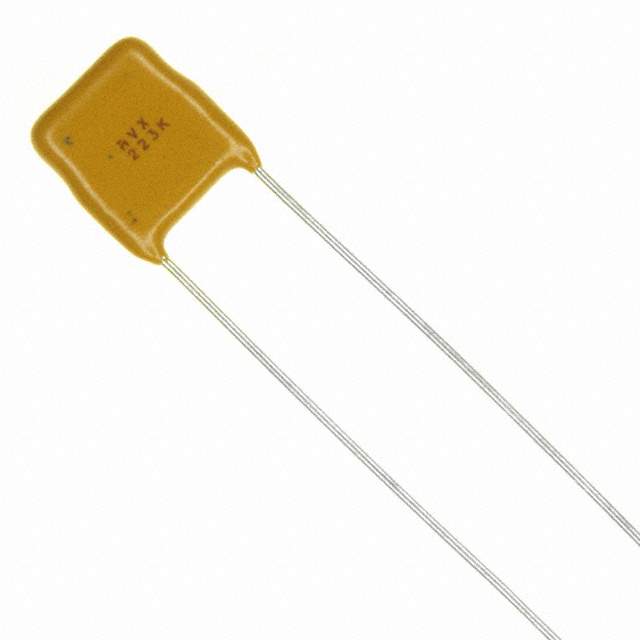

SV13CC102KAR Real Image
Same model may have multiple batches, images only for reference.

SV13CC102KAR

Part No SV13CC102KAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV13CC102KAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 630V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.300" L x 0.200" W (7.62mm x 5.08mm)
Height - Seated (Max) 0.360" (9.14mm)
Lead Spacing 0.200" (5.08mm)
Lead Style Straight
Other Names 478-5389
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302944-SV13CC102KAR
Ultra Librarian 3D Model Ultra Librarian SV13CC102KAR CAD Model

Description

The KYOCERA AVX SV series ceramic capacitor is a high voltage capacitor with a capacitance of 1000 pF and a voltage rating of 630V.

  • Manufacturer: KYOCERA AVX
  • Capacitance: 1000 pF
  • Voltage Rating: 630V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Mounting Type: Through-Hole
  • Package: Radial
  • Application: General-Purpose
  • Height (Seated): 0.360" (9.14mm)
  • Standard Package: 300
