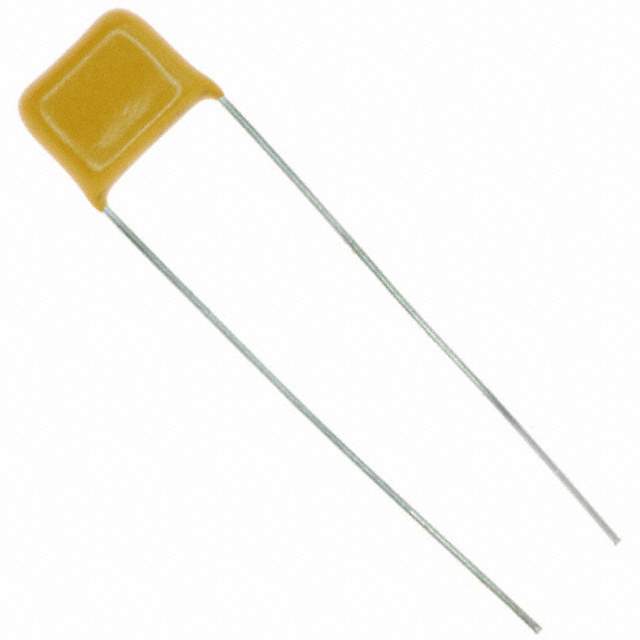

SV09AA683KBA Real Image
Same model may have multiple batches, images only for reference.

SV09AA683KBA

Part No SV09AA683KBA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV09AA683KBA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 0.068 µF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.772" L x 0.200" W (19.60mm x 5.08mm)
Height - Seated (Max) 0.720" (18.30mm)
Lead Spacing 0.673" (17.10mm)
Lead Style Straight
Standard Package 50
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302957-SV09AA683KBA
Ultra Librarian 3D Model Ultra Librarian SV09AA683KBA CAD Model

Description

The SV09AA683KBA is a ceramic capacitor manufactured by KYOCERA AVX.

  • Manufacturer: KYOCERA AVX
  • Series: SV
  • Capacitance: 0.068 µF
  • Voltage Rating: 1000V (1kV)
  • Tolerance: ±10%
  • Temperature Coefficient: C0G, NP0
  • Height: 0.720" (18.30mm)
  • Lead Spacing: 0.673" (17.10mm)
  • Package: Radial
  • Standard Package: 50
  • Operating Temperature: -55°C to 125°C
