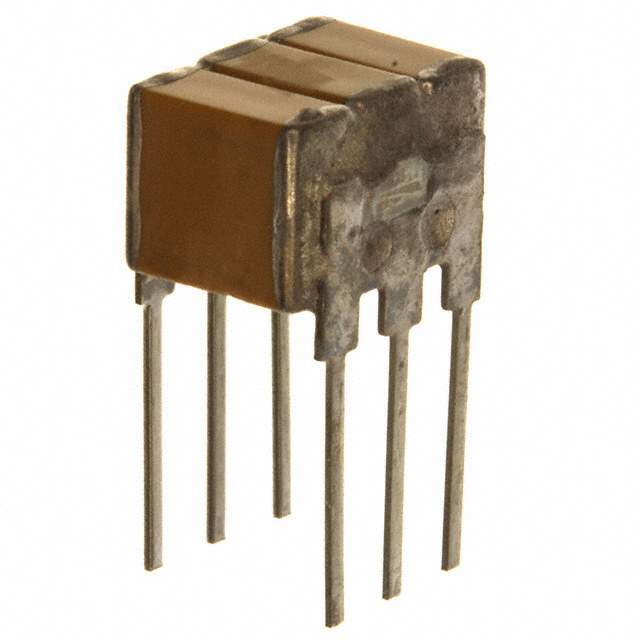

ST205C276MAN03 Real Image
Same model may have multiple batches, images only for reference.

ST205C276MAN03

Part No ST205C276MAN03
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
ST205C276MAN03 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series TurboCap™
Package Bulk
Capacitance 27 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Type Through Hole
Package / Case Stacked DIP, 6 Lead
Dimension 0.325" L x 0.300" W (8.26mm x 7.62mm)
Height - Seated (Max) 0.220" (5.59mm)
Lead Spacing 0.220" (5.59mm)
Other Names 478-5074
Standard Package 48
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1302900-ST205C276MAN03
Ultra Librarian 3D Model Ultra Librarian ST205C276MAN03 CAD Model

Description

The ST205C276MAN03 is a high-quality ceramic capacitor that is designed for use in a variety of applications, including SMPS filtering, bypass, and decoupling.

  • Feature: Low ESL (Stacked)
  • Capacitance: 27 μF
  • RoHS Compliant: Yes
  • Package: Lead-free package
