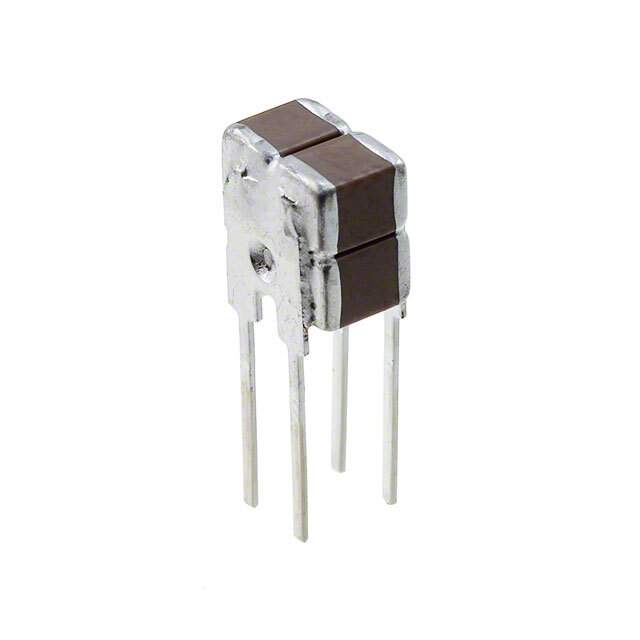

ST105C396MAN02 Real Image
Same model may have multiple batches, images only for reference.

ST105C396MAN02

Part No ST105C396MAN02
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
ST105C396MAN02 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series Mini-TurboCap™
Package Bulk
Capacitance 39 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Type Through Hole
Package / Case Stacked DIP, 4 Lead
Dimension 0.210" L x 0.190" W (5.33mm x 4.83mm)
Height - Seated (Max) 0.220" (5.59mm)
Lead Spacing 0.150" (3.80mm)
Lead Style Straight
Other Names 478-9344
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1307107-ST105C396MAN02
Ultra Librarian 3D Model Ultra Librarian ST105C396MAN02 CAD Model

Description

The KYOCERA AVX 1307107-ST105C396MAN02 ceramic capacitor is a Mini-TurboCap™ capacitor with a capacitance of 39 µF and a tolerance of ±20% manufactured by KYOCERA AVX.

  • Capacitance: 39 µF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • Temperature Coefficient: X7R
  • Mounting Type: Through hole
  • Package/Case: Stacked DIP, 4 lead
  • Ideal for: Use in SMPS Filtering, Bypass, and Decoupling applications
  • Operating Temperature Range: -55°C ~ 125°C
