Same model may have multiple batches, images only for reference.

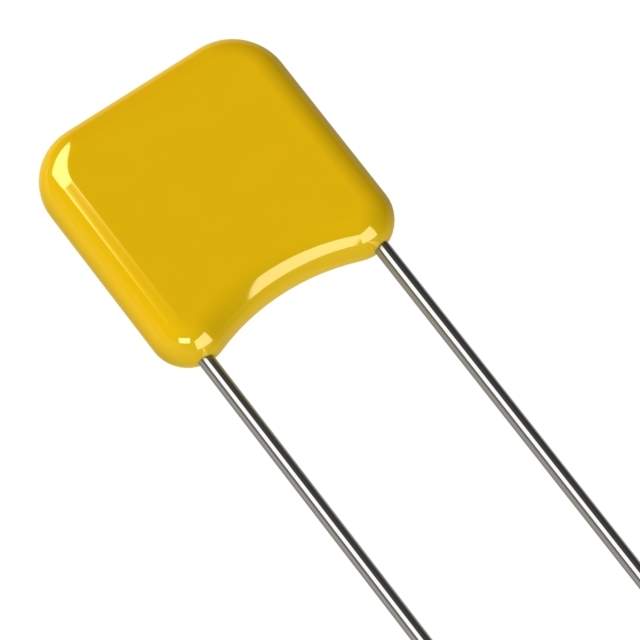

SR505C275KAR Real Image
Same model may have multiple batches, images only for reference.

SR505C275KAR

Part No SR505C275KAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR505C275KAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 2.7 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.560" (14.22mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Straight
Other Names SR505C275KAR,478-SR505C275KAR
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305524-SR505C275KAR
Ultra Librarian 3D Model Ultra Librarian SR505C275KAR CAD Model

Description

The SkyCap® SR series ceramic capacitor from KYOCERA AVX is a general-purpose component that comes with a capacitance of 2.7 µF and a voltage rating of 50V.

  • Capacitance: 2.7 µF
  • Voltage Rating: 50V
  • Temperature Coefficient: X7R
  • Temperature Range: -55°C to 125°C
  • Tolerance: ±10%
  • Lead Spacing: 0.400 inches (10.16mm)
  • Dimensions: 0.500 inches L x 0.200 inches W (12.70mm x 5.08mm)
  • Height: 0.560 inches (14.22mm) when seated
  • Packaging: Bulk packaging of 500 units
  • Package/Case: Radial
  • Application: Various general-purpose applications
