Same model may have multiple batches, images only for reference.

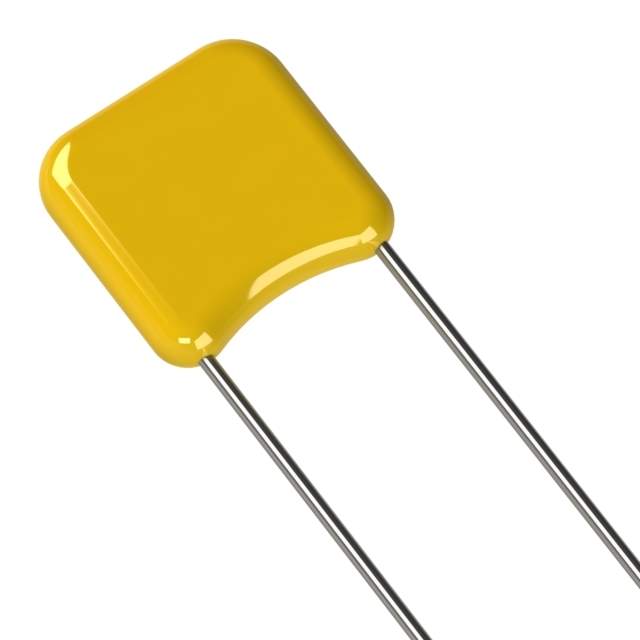

SR505A104GAR Real Image
Same model may have multiple batches, images only for reference.

SR505A104GAR

Part No SR505A104GAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR505A104GAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 0.1 µF
Tolerance ±2%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.560" (14.22mm)
Lead Spacing 0.400" (10.16mm)
Lead Style Straight
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305861-SR505A104GAR
Ultra Librarian 3D Model Ultra Librarian SR505A104GAR CAD Model

Description

The SkyCap® SR series ceramic capacitor from KYOCERA AVX is a general-purpose capacitor designed to deliver reliable performance.

  • Capacitance: 0.1 µF
  • Voltage Rating: 50V
  • Tolerance: ±2%
  • Temperature Coefficient: C0G, NP0
  • Dimensions: 0.500" L x 0.200" W (12.70mm x 5.08mm)
  • Lead Spacing: 0.400" (10.16mm)
  • Package: Radial
  • Mounting: Through Hole
  • Operating Temperature Range: -55°C to 125°C
