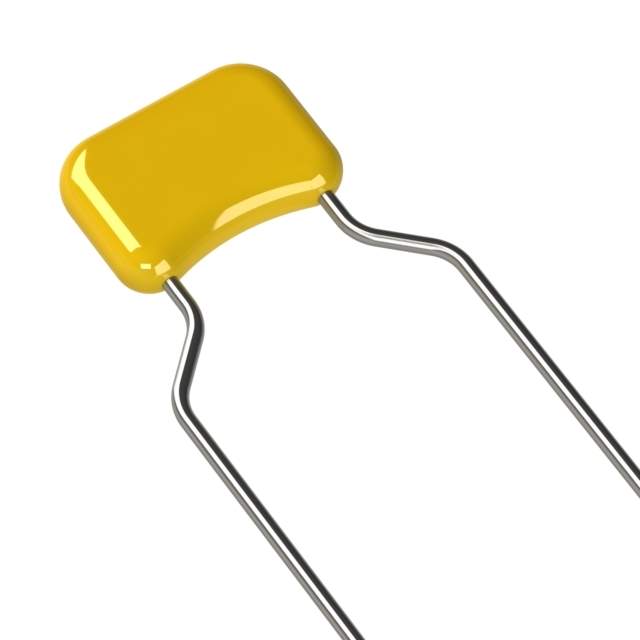

SR292A561JAR Real Image
Same model may have multiple batches, images only for reference.

SR292A561JAR

Part No SR292A561JAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR292A561JAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 560 pF
Tolerance ±5%
Voltage - Rated 200V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.200" L x 0.125" W (5.08mm x 3.18mm)
Height - Seated (Max) 0.250" (6.35mm)
Lead Spacing 0.100" (2.54mm)
Lead Style Formed Leads
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305350-SR292A561JAR
Ultra Librarian 3D Model Ultra Librarian SR292A561JAR CAD Model

Description

The KYOCERA AVX SR292A561JAR is a ceramic capacitor that is part of the SkyCap® SR series.

  • Capacitance: 560 pF
  • Voltage Rating: 200V
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Height - Seated (max): 0.250" (6.35mm)
  • Lead Spacing: 0.100" (2.54mm)
  • Application: General-Purpose
  • Temperature Range: -55°C ~ 125°C
  • Package: Radial
  • Mounting: Through Hole
  • Package: Bulk
  • Standard Package: 1,000
