Same model may have multiple batches, images only for reference.

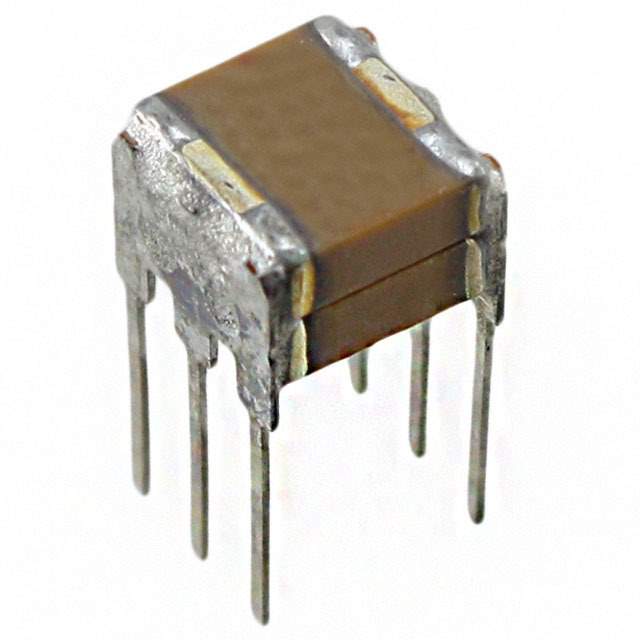

SMX53A104KAN240 Real Image
Same model may have multiple batches, images only for reference.

SMX53A104KAN240

Part No SMX53A104KAN240
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SMX53A104KAN240 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SMX
Package Bulk
Capacitance 0.1 µF
Tolerance ±10%
Voltage - Rated 25V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 200°C
Features Low ESL (Stacked), High Temperature
Applications SMPS Filtering
Mounting Type Through Hole
Package / Case Stacked DIP, 6 Lead
Dimension 0.250" L x 0.300" W (6.35mm x 7.62mm)
Height - Seated (Max) 0.240" (6.10mm)
Lead Spacing 0.250" (6.35mm)
Other Names 478-5595
Standard Package 70
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1304670-SMX53A104KAN240
Ultra Librarian 3D Model Ultra Librarian SMX53A104KAN240 CAD Model

Description

The 1304670-SMX53A104KAN240 ceramic capacitor from Kyocera AVX is a part of the SMX series and is perfect for SMPS filtering applications.

  • Capacitance: 0.1 µF
  • Voltage Rating: 25V
  • Temperature Coefficient: C0G, NP0
  • Package/Case: Stacked DIP, 6 lead
  • Mounting: Through-hole mounted
  • Lead Spacing: 0.250"
  • Height Seated: 0.240"
  • Dimension: 0.250" L x 0.300" W
  • Standard Package: 70
  • ROHS Compliance: ROHS non-compliant
  • Ideal for: Power supplies, lighting, and consumer electronics
