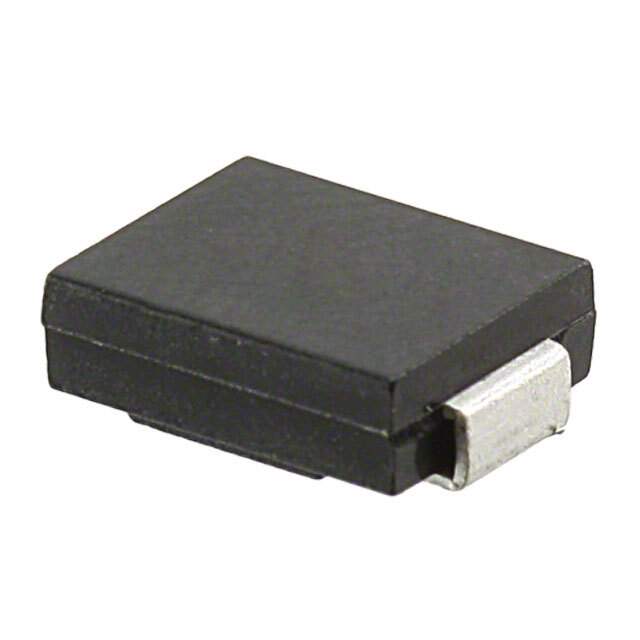

SMCJ140A Real Image
Same model may have multiple batches, images only for reference.

SMCJ140A

Part No SMCJ140A
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Diodes
Datasheet
SMCJ140A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr KYOCERA AVX
Package Tape & Reel
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 140V
Voltage - Breakdown (Min) 155V
Voltage - Clamping (Max) @ Ipp 227V
Current - Peak Pulse (10/1000µs) 6.6A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Other Names 478-7076-2,PFD30011,478-7076-1,478-7076-6
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300938-SMCJ140A
Ultra Librarian 3D Model Ultra Librarian SMCJ140A CAD Model

Description

The SMCJ140A is a TVS diode from AVX Corp/Kyocera Corp.

  • Type: Unidirectional zener diode
  • Voltage Rating: 140V
  • Breakdown Voltage: 155V
  • Clamping Voltage: 227V @ 1.5kW peak pulse power
  • Packaging: Tape and reel package
  • Operating Temperature Range: -55°C to 150°C
  • Package/Case: DO-214AB (SMC)
  • Mounting: Surface mount technology
  • ECCN: EAR99 compliant
  • REACH: Unaffected by REACH regulations
