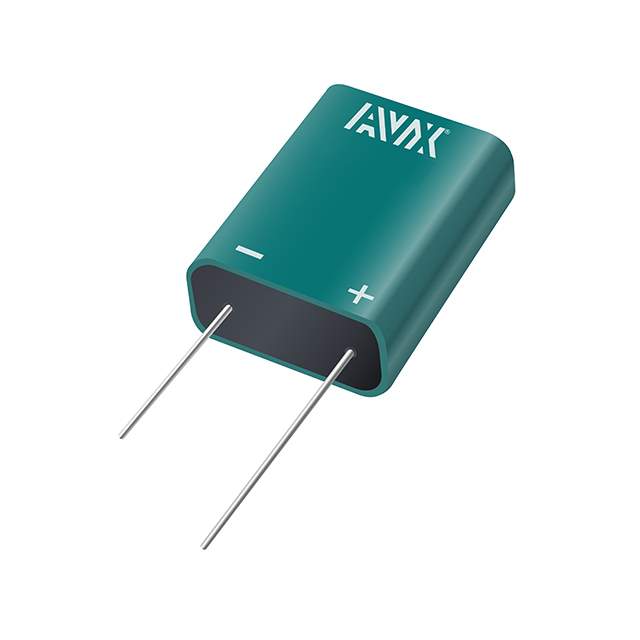

SCMR18C105PSBA0H Real Image
Same model may have multiple batches, images only for reference.

SCMR18C105PSBA0H

Part No SCMR18C105PSBA0H
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCMR18C105PSBA0H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCM
Package Bulk
Capacitance 1 F
Tolerance 0%, +100%
Voltage - Rated 5 V
ESR (Equivalent Series Resistance) 250mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 65°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.453" (11.50mm)
Dimension 0.728" L x 0.374" W (18.50mm x 9.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Temperature Range - Operating -40°C ~ 85°C
Other Names SCMR18C105MSBA0,478-10016
Standard Package 270
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1302732-SCMR18C105PSBA0H
Ultra Librarian 3D Model Ultra Librarian SCMR18C105PSBA0H CAD Model

Description

The SCM series from KYOCERA AVX is an electric double-layer capacitor (EDLC) that features a capacitance of 1 F and a voltage rating of 5 V.

  • Capacitance: 1 F
  • Voltage Rating: 5 V
  • Tolerance: 0%, +100%
  • ESR: 250mOhm @ 1kHz
  • Height: 0.846" (21.50mm)
  • Package Size: Radial, Can
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Temperature Range: -40°C to 85°C
  • Lifetime: 1000 Hrs @ 65°C
