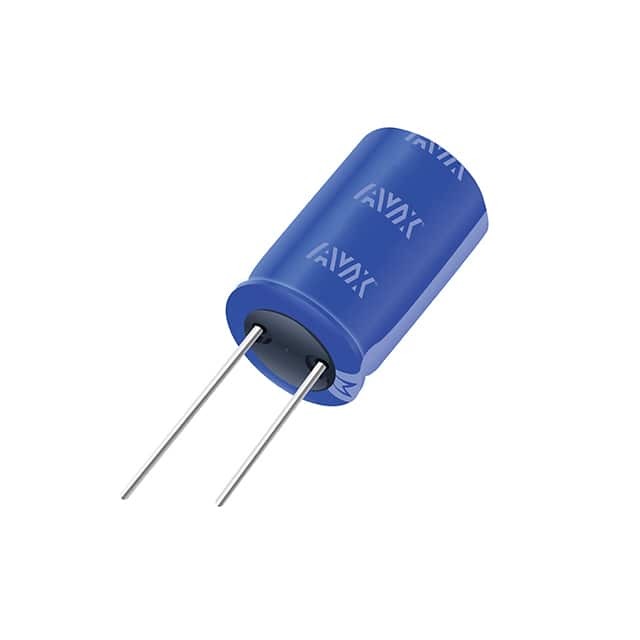

Same model may have multiple batches, images only for reference.
SCCS20B505PRBLE AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

SCCS20B505PRBLE

Part No SCCS20B505PRBLE
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCCS20B505PRBLE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCC LE
Package Bulk
Capacitance 5 F
Tolerance -10%, +30%
Voltage - Rated 2.7 V
ESR (Equivalent Series Resistance) 40mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 60°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names 478-12168,SCCS20B505SRBLE,SCCS20B505SRBLE
Standard Package 900
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1302768-SCCS20B505PRBLE
Ultra Librarian 3D Model Ultra Librarian SCCS20B505PRBLE CAD Model

Description

The SCC LE series from KYOCERA AVX is an electric double layer capacitor (EDLC), supercapacitor with a capacitance of 5 F and rated voltage of 2.7 V.

  • ESR (Equivalent Series Resistance): 40mOhm @ 1kHz
  • Lifetime: 1000 Hrs @ 60°C
  • Operating Temperature Range: -40°C to 65°C
  • Mounting: Through Hole
  • Package: Radial, Can
  • Lead Spacing: 0.197" (5.00mm)
  • Height - Seated (Max): 0.846" (21.50mm)
  • Part Number: SCCS20B505PRBLE (Available in Bulk)
  • Standard Package: 900
  • Mfr Part Number: SCCS20B505SRBLE
