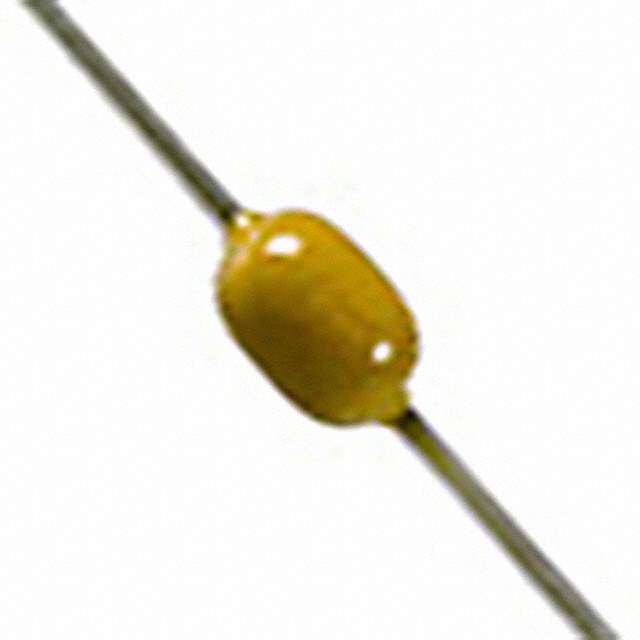

SA305E824MAR Real Image
Same model may have multiple batches, images only for reference.

SA305E824MAR

Part No SA305E824MAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SA305E824MAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SpinGuard® SA
Package Tape & Reel (TR)
Capacitance 0.82 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient Z5U
Temperature Range - Operating 10°C ~ 85°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Axial
Dimension 0.150" Dia x 0.290" L (3.81mm x 7.37mm)
Lead Style Straight
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0040
Win Source Part Number 1304190-SA305E824MAR
Ultra Librarian 3D Model Ultra Librarian SA305E824MAR CAD Model

Description

The KYOCERA AVX 1304190-SA305E824MAR ceramic capacitor is a SpinGuard® SA capacitor with a capacitance of 0.82 µF and a tolerance of ±20%.

  • Voltage Rating: 50V
  • Temperature Coefficient: Z5U
  • Mounting Type: Through Hole
  • Package/Case Size: Axial
  • Application: General Purpose
  • Temperature Range: 10°C ~ 85°C
