Same model may have multiple batches, images only for reference.

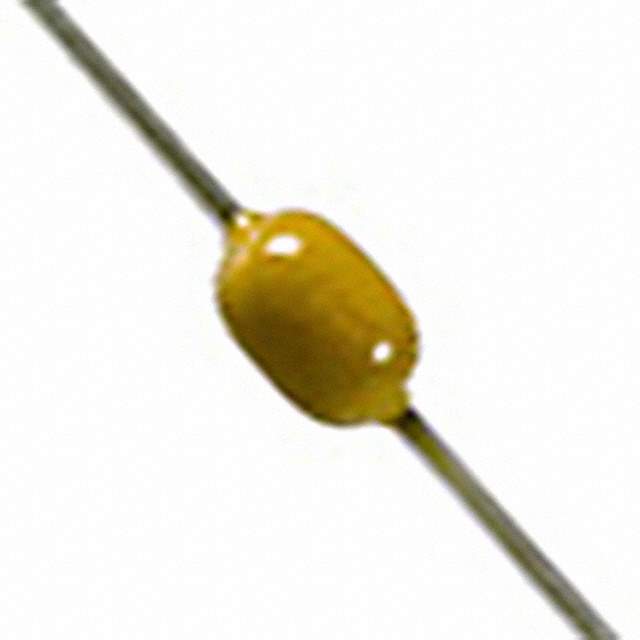

SA115C683KAC Real Image
Same model may have multiple batches, images only for reference.

SA115C683KAC

Part No SA115C683KAC
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SA115C683KAC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SpinGuard® SA
Package Tape & Box (TB)
Capacitance 0.068 µF
Tolerance ±10%
Voltage - Rated 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Axial
Dimension 0.120" Dia x 0.170" L (3.05mm x 4.32mm)
Lead Style Straight
Standard Package 2,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0040
Win Source Part Number 1304630-SA115C683KAC
Ultra Librarian 3D Model Ultra Librarian SA115C683KAC CAD Model

Description

The SA115C683KAC is a ceramic capacitor with a capacitance of 0.068 µF.

  • Capacitance: 0.068 µF
  • Tolerance: ±10%
  • Voltage Rating: 50V
  • Temperature Coefficient: X7R
  • Mounting: Through-Hole
  • Package: Tape and Box
  • Standard Package: 2,000
  • Lead Style: Straight
  • Package/Case: Axial
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.120" Dia x 0.170" L (3.05mm x 4.32mm)
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8532.24.0040
  • Manufacturer: KYOCERA AVX
  • RoHS Status: RoHS non-compliant
