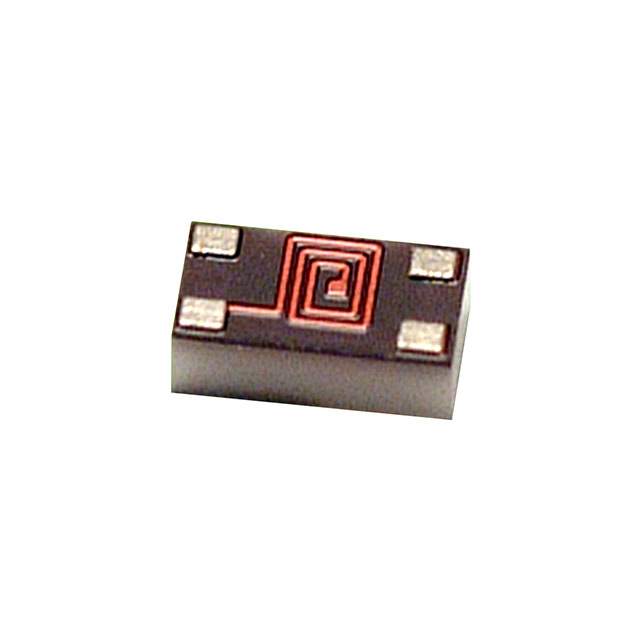

LP0603A1842ANTR Real Image1 LP0603A1842ANTR Real Image2
Same model may have multiple batches, images only for reference.
LP0603A1842ANTR Real Image1 LP0603A1842ANTR Real Image2
LP0603A1842ANTR Real Image1 LP0603A1842ANTR Real Image2
Same model may have multiple batches, images only for reference.

LP0603A1842ANTR

Part No LP0603A1842ANTR
Manufacturer AVX Corp/Kyocera Corp
Catalog RF Filters
Description RF FILTER LOW PASS 1.843GHZ 0603 / 1.843GHz Center Frequency Low Pass RF Filter (Radio Frequency) 75MHz Bandwidth 0.3dB 0603 (1608 Metric), 4 PC Pad
Datasheet
LP0603A1842ANTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr AVX Corp/Kyocera Corp
Series LP0603
Package Tape & Reel (TR)
Frequency 1.843GHz Center
Bandwidth 75MHz
Filter Type Low Pass
Ripple -
Insertion Loss 0.3dB
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 4 PC Pad
Size / Dimension 0.063" L x 0.033" W (1.60mm x 0.84mm)
Height (Max) 0.028" (0.70mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 3,000 pcs
Win Source Part Number 1382517-LP0603A1842ANTR
Ultra Librarian 3D Model Ultra Librarian LP0603A1842ANTR CAD Model

Description

The LP0603A1842ANTR is a low pass RF filter from the LP0603 series.

  • Series: LP0603
  • Mounting: Surface Mount
  • Package Type: Tape and Reel
  • Dimensions: 0.063" L x 0.033" W
  • Height: 0.028"
  • Center Frequency: 1.843GHz
  • Bandwidth: 75MHz
  • Insertion Loss: 0.3dB
  • Manufacturer: AVX Corp/Kyocera Corp
  • Moisture Sensitivity Level: 1 (unlimited)
