Same model may have multiple batches, images only for reference.

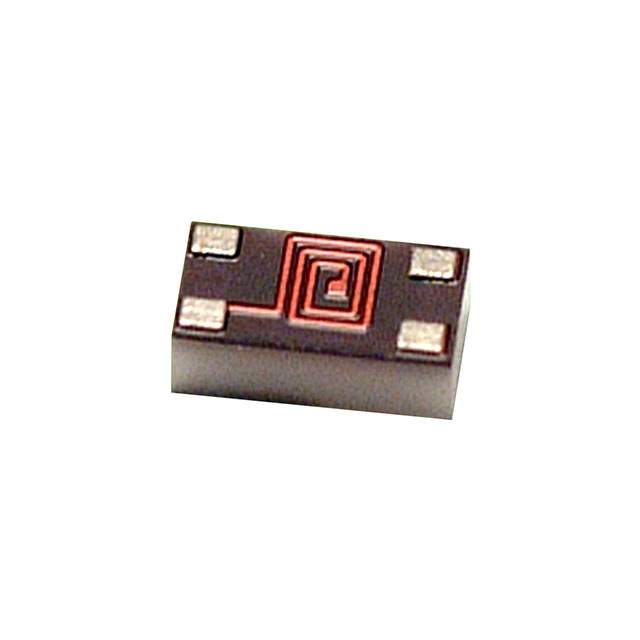

LP0603A1842ANTR\500 Real Image
Same model may have multiple batches, images only for reference.

LP0603A1842ANTR\500

Part No LP0603A1842ANTR\500
Manufacturer AVX Corp/Kyocera Corp
Catalog RF Filters
Description RF FILTER LOW PASS 1.843GHZ 0603 / 1.843GHz Center Frequency Low Pass RF Filter (Radio Frequency) 75MHz Bandwidth 0.3dB 0603 (1608 Metric), 4 PC Pad
Datasheet
LP0603A1842ANTR\500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr KYOCERA AVX
Series LP0603
Package Tape & Reel (TR)
Frequency 1.843GHz Center
Bandwidth 75MHz
Filter Type Low Pass
Insertion Loss 0.3dB
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric), 4 PC Pad
Dimension 0.063" L x 0.033" W (1.60mm x 0.84mm)
Height (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 500
Win Source Part Number 1006070-LP0603A1842ANTR\500
Ultra Librarian 3D Model Ultra Librarian LP0603A1842ANTR\500 CAD Model

Description

The LP0603 low pass filter is a perfect solution for RF filter applications.

  • Center Frequency: 1.843GHz
  • Bandwidth: 75MHz
  • Insertion Loss: 0.3dB
  • Package: 0603 (1608 Metric), 4 PC Pad
  • Mounting Type: SMD (SMT)
  • Height: 0.028" (0.70mm)
  • Ripple: -
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
