Same model may have multiple batches, images only for reference.

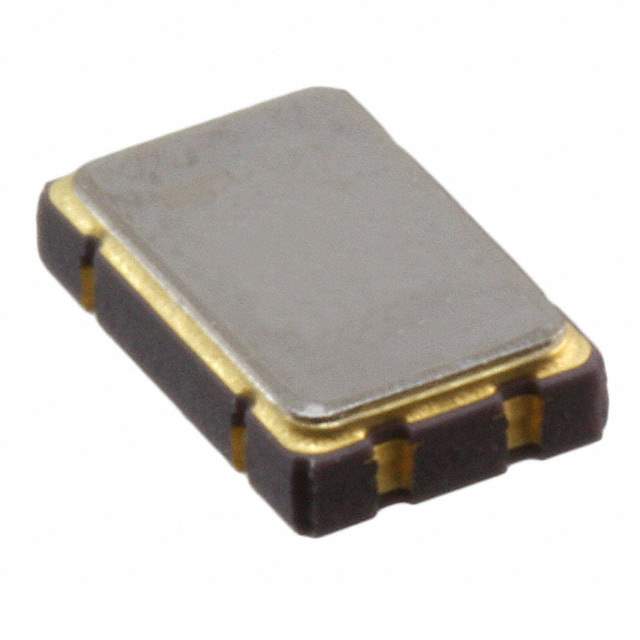

KC5032A8.00000CM0E00 Real Image
Same model may have multiple batches, images only for reference.

KC5032A8.00000CM0E00

Part No KC5032A8.00000CM0E00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 8.0000MHZ CMOS SMD / 8 MHz XO (Standard) CMOS Oscillator 1.6V ~ 5.5V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr KYOCERA AVX
Series KC5032A-CM
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 8 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.6V ~ 5.5V
Frequency Stability ±50ppm
Temperature Range - Operating -10°C ~ 70°C
Current - Supply (Max) 9.5mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 478-KC5032A8.00000CM0E00,1253-1059-2-ND,1253-1059-6,478-KC5032A8.00000CM0E00-ND,478-KC5032A8.00000CM0E00TR,1253-1059-1-ND,1253-1059-6-ND,478-KC5032A8.00000CM0E00CT,KC5032A800000CM0E00,478-KC5032A8.00000CM0E00DKR,1253-1059-1,1253-1059-2
Standard Package 1,000
Win Source Part Number 1143695-KC5032A8.00000CM0E00
Ultra Librarian 3D Model Ultra Librarian KC5032A8.00000CM0E00 CAD Model

Description

The KYOCERA AVX KC5032A-CM series of oscillators is a great choice for standby (power down) applications.

  • Frequency: 8 MHz
  • Frequency Stability: ±50ppm
  • Current Supply: 9.5mA
  • Current Supply (Disable): 10µA
  • Voltage Supply: 1.6V to 5.5V
  • Package/Case Size: 4-SMD, No Lead
  • Height: 0.047" (1.20mm) when seated
  • Packaging: Tape and Reel
  • Temperature Range: -10°C to 70°C
