Same model may have multiple batches, images only for reference.

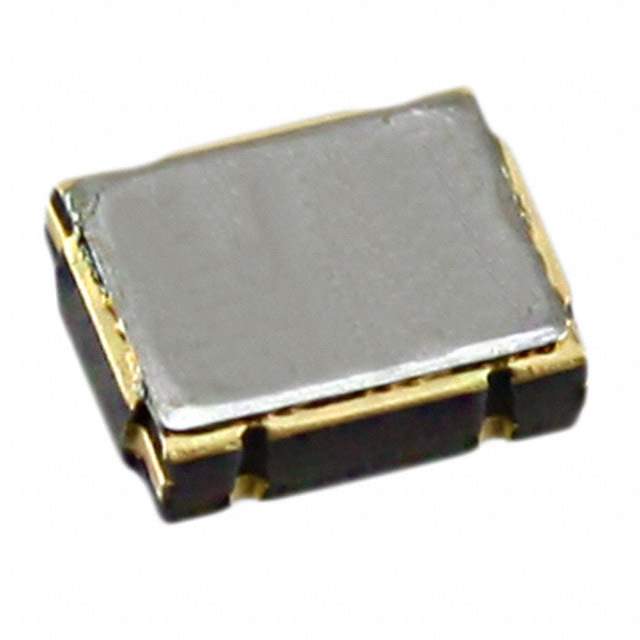

KC3225A125.000C20E00 Real Image
Same model may have multiple batches, images only for reference.

KC3225A125.000C20E00

Part No KC3225A125.000C20E00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 125.0000MHZ CMOS SMD / 125 MHz XO (Standard) CMOS Oscillator 2.5V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr KYOCERA AVX
Series KC3225A-C2
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 125 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating -10°C ~ 70°C
Current - Supply (Max) 18mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 478-6146-1,478-6146-1-ND,478-6146-2,478-6146-2-ND,478-6146-6,478-KC3225A125.000C20E00,478-6146-6-ND,KC3225A125000C20E00
Standard Package 2,000
Win Source Part Number 1153307-KC3225A125.000C20E00
Ultra Librarian 3D Model Ultra Librarian KC3225A125.000C20E00 CAD Model

Description

The KC3225A125.000C20E00 is a crystal oscillator from the KC3225A-C2 series. It is a standard type XO oscillator with a frequency of 125MHz and a frequency stability of ±50ppm.

  • Frequency: 125MHz
  • Frequency Stability: ±50ppm
  • Output: CMOS
  • Function: Standby (power-down)
  • Package: Tape and reel with 4-SMD, no lead
  • Mounting: Surface mount
  • Status: Obsolete
  • REACH: Unaffected
