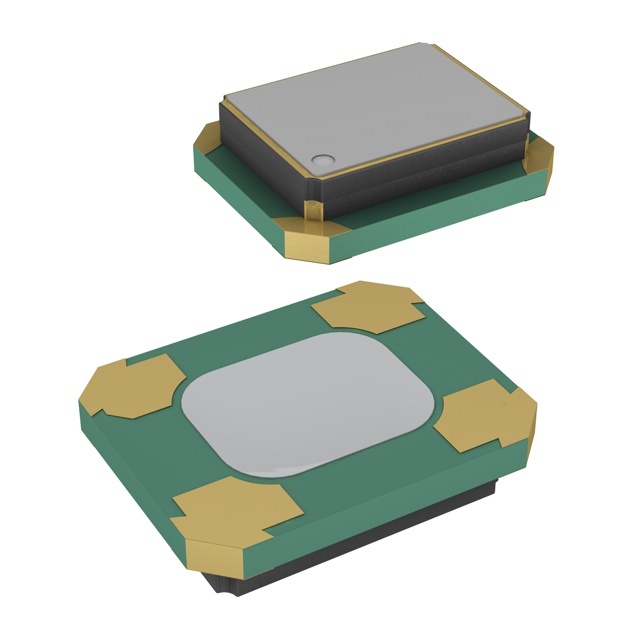

Same model may have multiple batches, images only for reference.
KC2520K24.5760C1GE00 AVX Corp/Kyocera Corp – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

KC2520K24.5760C1GE00

Part No KC2520K24.5760C1GE00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 24.5760MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Base Resonator Crystal
Type XO (Standard)
Frequency 24.576 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.6V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting Type Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031\
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1529857-KC2520K24.5760C1GE00
Ultra Librarian 3D Model Ultra Librarian KC2520K24.5760C1GE00 CAD Model
