Same model may have multiple batches, images only for reference.

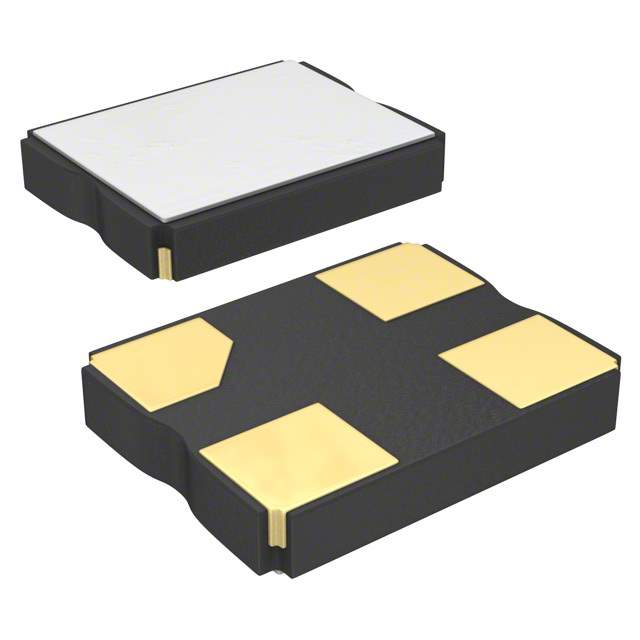

KC2520C38.4000C1YE00 Real Image
Same model may have multiple batches, images only for reference.

KC2520C38.4000C1YE00

Part No KC2520C38.4000C1YE00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 38.4000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Kyocera International Inc. Electronic Components
Packaging Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 38.4MHz
Function Standby (Power Down)
Output CMOS
Supply Voltage (V) 1.8V
Frequency Stability ±10ppm
Temperature Range - Operating -10°C ~ 70°C
Maximum Supply Current 3.5mA
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Parts Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.028" (0.70mm)
Current - Supply (Disable) (Maximum) 5μA
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 739011-KC2520C38.4000C1YE00
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KC2520C38.4000C1YE00 CAD Model

Description

The Kyocera International Inc. Electronic Components XO (Standard) is a high-quality electronic component that comes with a frequency of 38.4MHz.

  • Frequency: 38.4MHz
  • Mode: Standby (power down)
  • Output: CMOS
  • Frequency Stability: ±10ppm
  • Package: 4-SMD, no lead
  • Height Seated: 0.028" (0.70mm)
  • Supply Current (Maximum): 3.5mA
  • Current Supply (Disable) (Maximum): 5μA
  • Temperature Range: -10°C to 70°C
