Same model may have multiple batches, images only for reference.

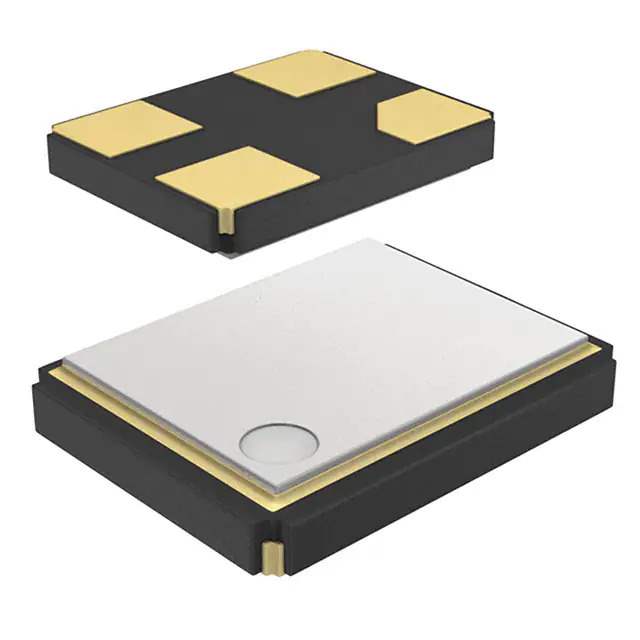

KC2520B12.0000C10E00 Real Image
Same model may have multiple batches, images only for reference.

KC2520B12.0000C10E00

Part No KC2520B12.0000C10E00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 12.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr AVX Corp/Kyocera Corp
Series KC2520B-C1
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 12 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.6V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -10°C ~ 70°C
Current - Supply (Max) 3.5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 876338-KC2520B12.0000C10E00
Ultra Librarian 3D Model Ultra Librarian KC2520B12.0000C10E00 CAD Model

Description

The KC2520B-C1 series KC2520B12.0000C10E00 is a crystal oscillator from AVX Corp/Kyocera Corp.

  • Category: Crystals, Oscillators, Resonators - Oscillators
  • Package: Tape & Reel
  • Standard Package: 2,000 pieces
  • Frequency: 12 MHz
  • Frequency Stability: ±50ppm
  • Supply Voltage: 1.6V to 3.63V
  • Current Supply: 3.5mA
  • Function: Standby
  • Output: CMOS
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.028" (0.70mm)
  • Mounting: Surface Mount
  • Package: 4-SMD, No Lead
  • Operating Temperature: -10°C to 70°C
  • ECCN: EAR99
  • HTSUS Code: 8542.39.0001
