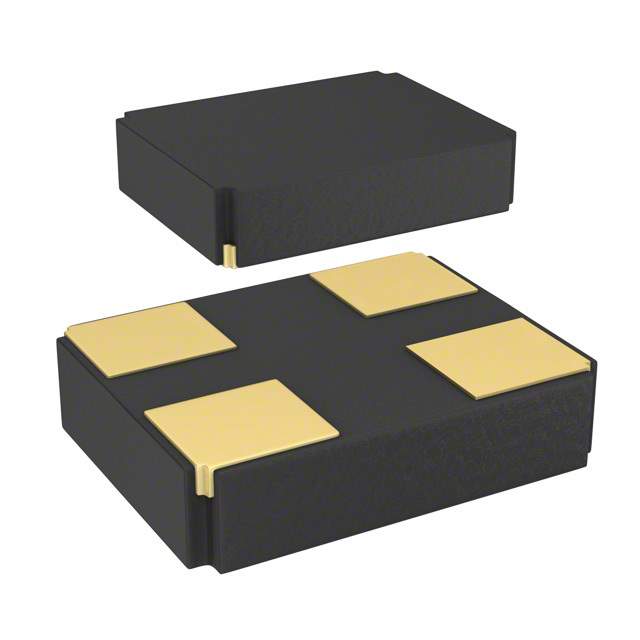

CX3225GB12000H0KPSC1 Real Image
Same model may have multiple batches, images only for reference.

CX3225GB12000H0KPSC1

Part No CX3225GB12000H0KPSC1
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 12.0000MHZ 12PF SMD
Datasheet
CX3225GB12000H0KPSC1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer AVX Corp/Kyocera Corp
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR 150 Ohm
Operating Mode Fundamental
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Win Source Part Number 1030877-CX3225GB12000H0KPSC1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CX3225GB12000H0KPSC1 CAD Model

Description

The CX3225GB12000H0KPSC1 MHz crystal from AVX Corp/Kyocera Corp is a surface mount device with a frequency of 12MHz.

  • Frequency: 12MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • ESR: 150 Ohm
  • Load Capacitance: 12pF
  • Operating Mode: Fundamental
  • Temperature Range: -40°C to 85°C
  • Height: 0.035" (0.90mm)
  • Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Packaging: Reel
