Same model may have multiple batches, images only for reference.

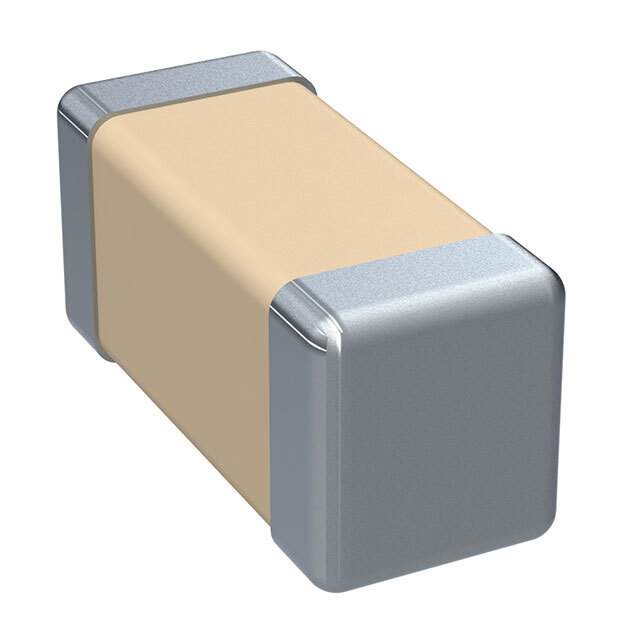

CU02CGR20B16AH Real Image
Same model may have multiple batches, images only for reference.

CU02CGR20B16AH

Part No CU02CGR20B16AH
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 0.2PF 16V C0G 01005 / 0.2 pF ±0.1pF 16V Ceramic Capacitor C0G, NP0 01005 (0402 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series CU
Package Tape & Reel
Capacitance 0.2 pF
Tolerance ±0.1pF
Voltage - Rated 16V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 01005 (0402 Metric)
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Thickness (Max) 0.009" (0.22mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 1253-CU02CGR20B16AHTR,1253-CU02CGR20B16AHDKR,1253-CU02CGR20B16AHCT
Standard Package 20,000
Win Source Part Number 1156317-CU02CGR20B16AH
Ultra Librarian 3D Model Ultra Librarian CU02CGR20B16AH CAD Model

Description

The CU series capacitor is a ceramic capacitor with a capacitance of 0.2 pF and a voltage rating of 16V.

  • Capacitance: 0.2 pF
  • Voltage Rating: 16V
  • Tolerance: ±0.1pF
  • Temperature Coefficient: C0G, NP0
  • Package Type: surface mount, MLCC
  • Standard Package: 20,000
  • Applications: RF, microwave, and high-frequency
  • Operating Temperature: -55°C to 125°C
