Same model may have multiple batches, images only for reference.

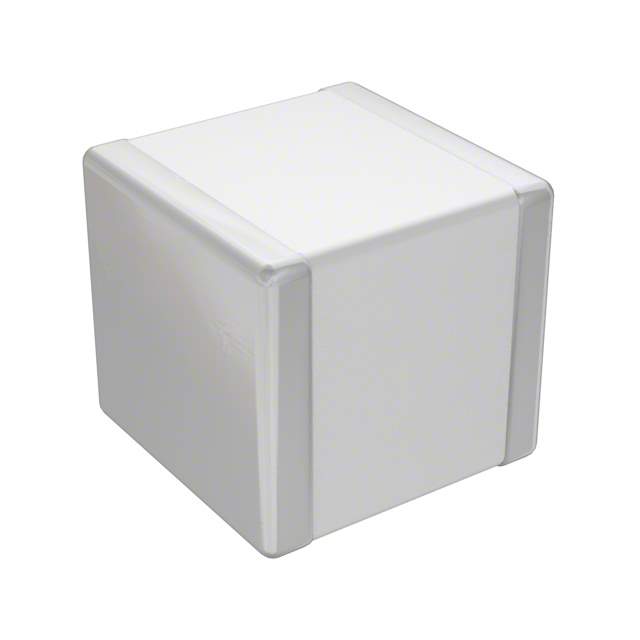

AQ147M101JAJME Real Image
Same model may have multiple batches, images only for reference.

AQ147M101JAJME

Part No AQ147M101JAJME
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 100PF 500V 1111 / 100 pF ±5% 500V Ceramic Capacitor M 1111 (2828 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series AQ
Package Tape & Reel (TR)
Product Status Obsolete
Capacitance 100 pF
Tolerance ±5%
Voltage - Rated 500V
Temperature Coefficient M
Temperature Range - Operating -55°C ~ 175°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 1111 (2828 Metric)
Dimension 0.110" L x 0.110" W (2.79mm x 2.79mm)
Thickness (Max) 0.102" (2.59mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 2,000
Win Source Part Number 962551-AQ147M101JAJME
Ultra Librarian 3D Model Ultra Librarian AQ147M101JAJME CAD Model

Description

The AQ capacitor from KYOCERA AVX is a ceramic capacitor with a capacitance of 100 pF and a voltage rating of 500V.

  • Tolerance: ±5%
  • Temperature Coefficient: M
  • Application: RF, microwave, and high-frequency applications
  • Maximum Thickness: 0.102" (2.59mm)
  • Package/Case: surface mount
  • Dimension: 0.110" L x 0.110" W (2.79mm x 2.79mm)
  • Lead Spacing: -
  • Operating Temperature Range: -55°C to 175°C
  • Mounting: surface mount, MLCC mounting
  • Standard Package: 2,000
