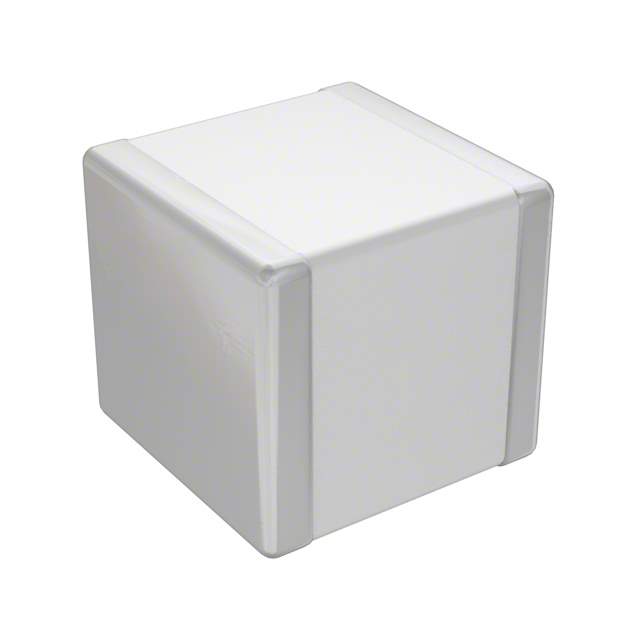

AQ147A750JAJME Real Image
Same model may have multiple batches, images only for reference.

AQ147A750JAJME

Part No AQ147A750JAJME
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 75PF 500V 1111 / 75 pF ±5% 500V Ceramic Capacitor A 1111 (2828 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Product Status Obsolete
Capacitance 75 pF
Tolerance ±5%
Voltage - Rated 500V
Temperature Coefficient A
Temperature Range - Operating -55°C ~ 175°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Surface Mount, MLCC
Case / Package 1111 (2828 Metric)
Size / Dimension 0.110" L x 0.110" W (2.79mm x 2.79mm)
Thickness (Max) 0.102" (2.59mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 2,000
Win Source Part Number 1330544-AQ147A750JAJME
Ultra Librarian 3D Model Ultra Librarian AQ147A750JAJME CAD Model

Description

The KYOCERA AVX 1330544-AQ147A750JAJME is a high-quality ceramic capacitor manufactured by KYOCERA AVX that is ideal for use in RF, microwave, and high-frequency applications.

  • Capacitance: 75 pF
  • Voltage Rating: 500V
  • Performance: High Q and low loss
  • Size: 0.110" L x 0.110" W (2.79mm x 2.79mm)
  • Thickness: 0.102" (2.59mm)
  • Temperature Range: -55°C to 175°C
  • Temperature Coefficient: A
  • Case/Package: 1111 (2828 Metric)
  • ECCN: EAR99
  • Standard Package: 2,000
