Same model may have multiple batches, images only for reference.

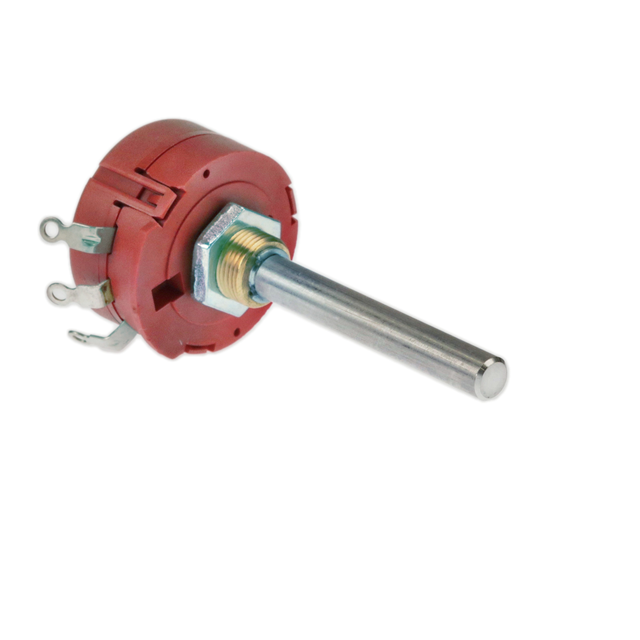

3114307602 Real Image
Same model may have multiple batches, images only for reference.

3114307602

Part No 3114307602
Manufacturer AVX Corp/Kyocera Corp
Catalog Rotary Potentiometers, Rheostats
Description POT 2W WIREWOUND LINEAR / Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Wirewound 2W Solder Lug
Datasheet
3114307602 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr KYOCERA AVX
Series ABW 2
Package Bulk
Power (Watts) 2W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Rotation 300°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Round
Actuator Length 1.969" (50.00mm)
Actuator Diameter 0.236" (6.00mm)
Bushing Thread M10 x 0.75
Mounting Type Panel Mount
Size - Body Round - 1.122" Dia (28.50mm)
Standard Package 100
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.31.0000
Win Source Part Number 1349321-3114307602
Ultra Librarian 3D Model Ultra Librarian 3114307602 CAD Model

Description

The ABW 2 series rotary potentiometer by KYOCERA AVX is a wirewound resistive component that functions as a variable resistor.

  • Series: ABW 2
  • Component Type: Wirewound
  • Function: Variable Resistor
  • Power (Watts): 2W
  • Actuator Type: Round
  • Actuator Length: 1.969 inches
  • Taper: Linear
  • Number of Gangs: Single
  • Switch: No
  • Resistance: User-Defined Value
  • Tolerance: ±5%
  • Package: Bulk
  • Mounting Type: Panel Mount
  • Bushing Thread: M10 x 0.75
  • Rotation: 300°
