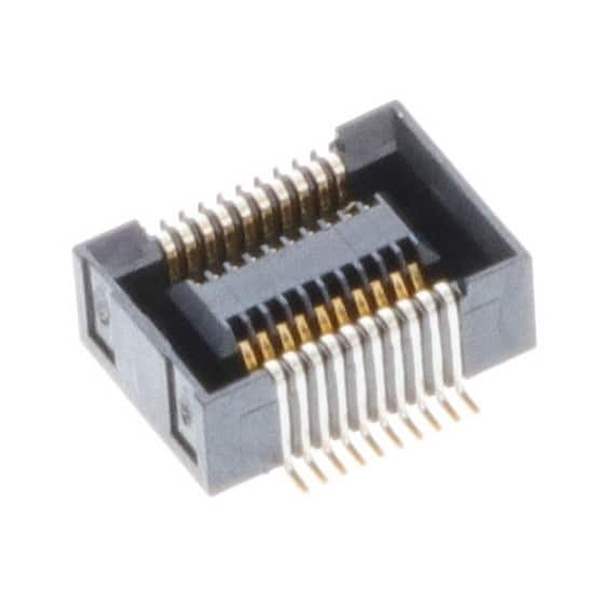

Same model may have multiple batches, images only for reference.

245846020000829+

Name: 245846020000829+
Brand: AVX Corp/Kyocera Corp
SKU: 854695
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	245846020000829+
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Rectangular Connectors
Description	RECPT - 0.4MM PITCH - 20 POS 3.0 / 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	AVX Corp/Kyocera Corp
Series	5846, Kyocera
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	20
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting Type	Surface Mount
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	3mm
Height Above Board	0.112" (2.85mm)
Base Product Number	245846
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854695-245846020000829+
Ultra Librarian 3D Model	Ultra Librarian 245846020000829+ CAD Model

Alternative Products

Description

The Kyocera 5846 series Rectangular Connector Array is a reliable and high-quality component for board-to-board connections.

Pitch: 0.016" (0.40mm)
Positions: 20
Contact Finish: gold-plated
Contact Finish Thickness: 4.00µin (0.100µm)
Mounting Type: surface mountable
Mated Stacking Height: 3mm
Height Above Board: 0.112" (2.85mm)
Operating Temperature Range: -55°C to 125°C
Product Status: active
Manufacturer: Kyocera
