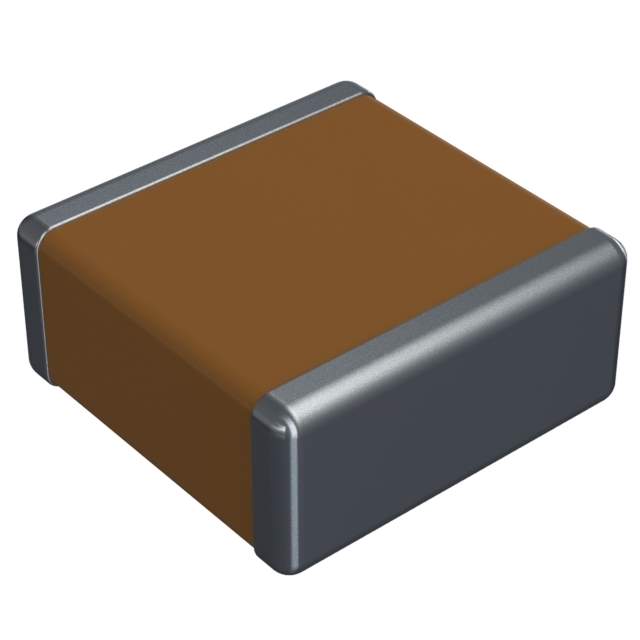

2225WC223KAT1A Real Image
Same model may have multiple batches, images only for reference.

2225WC223KAT1A

Part No 2225WC223KAT1A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 0.022UF 2.5KV X7R 2225 / 0.022 µF ±10% 2500V (2.5kV) Ceramic Capacitor X7R 2225 (5763 Metric)
Datasheet
2225WC223KAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KYOCERA AVX
Package Tape & Reel
Capacitance 0.022 µF
Tolerance ±10%
Voltage - Rated 2500V (2.5kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 2225 (5763 Metric)
Size / Dimension 0.225" L x 0.250" W (5.72mm x 6.35mm)
Thickness (Max) 0.100" (2.54mm)
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1339227-2225WC223KAT1A
Ultra Librarian 3D Model Ultra Librarian 2225WC223KAT1A CAD Model

Description

The 1339227-2225WC223KAT1A is a high voltage ceramic capacitor with a capacitance of 0.022 µF and a voltage rating of 2500V from KYOCERA AVX.

  • Capacitance: 0.022 µF
  • Voltage Rating: 2500V
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Package/Case: 2225 (5763 Metric)
  • Mounting Type: Surface Mount
  • Dimensions: 0.225" L x 0.250" W (5.72mm x 6.35mm)
  • Thickness: 0.100" (2.54mm)
  • Application: General Purpose
  • Packaging: Tape and Reel
