Same model may have multiple batches, images only for reference.

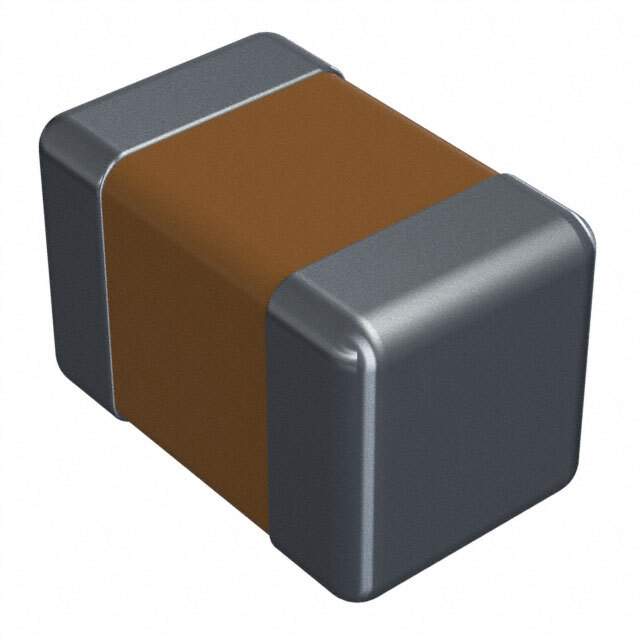

0805AC102KAT1A Real Image
Same model may have multiple batches, images only for reference.

0805AC102KAT1A

Part No 0805AC102KAT1A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 1000PF 1KV X7R 0805 / 1000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 0805 (2012 Metric)
Datasheet
0805AC102KAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Package Tape & Reel
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Dimension 0.083" L x 0.049" W (2.10mm x 1.25mm)
Thickness (Max) 0.037" (0.94mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 478-3998-6,0805AC102KAT1A\\4K,478-3998-2,0805AC102KAT1A/4K,478-3998-1
Standard Package 4,000
Win Source Part Number 1106945-0805AC102KAT1A
Ultra Librarian 3D Model Ultra Librarian 0805AC102KAT1A CAD Model

Description

The KYOCERA AVX ceramic capacitor is a general-purpose capacitor that is ideal for use in a variety of electronic applications.

  • Manufacturer: KYOCERA AVX
  • Capacitance: 1000 pF
  • Voltage Rating: 1000V (1kV)
  • Package: Tape and reel
  • Mounting: Surface Mount MLCC
  • Size: 0805 (2012 Metric)
  • Thickness: 0.037" (0.94mm)
  • Operating Temperature: -55°C to 125°C
